Is the Dometic single zone LCD thermostat easy to read?
Is the Dometic single zone LCD thermostat easy to read?

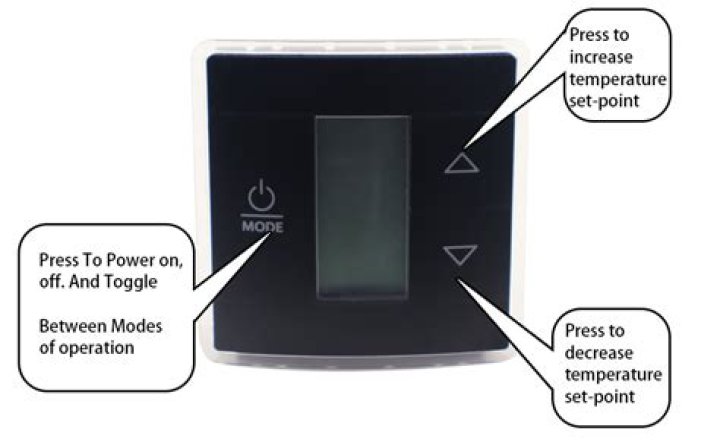

The large custom LCD display is easy to read and the blue backlight makes it easy to see even in low light. With just three capacitive-touch graphic symbols, the thermostat is simple to understand and operate. This thermostat can be used for cooling, heating, and furnace control.
How do I change the temperature on my Dometic thermostat?
To display the Inside Temperature your thermostat should be in Off Mode. Fan Speed Press the On/Off Mode button until the fan green LED is lit. “Au” (Auto). Press the “+” or “―” button to select the desired fan speed. The temperature set-point is indicated by two digits on the LCD.
What does the error code E1 mean on the Dometic thermostat?
Error Code: E1 Results from a loss of communication between the Single Zone LCD thermostat and its module board. LCD will cycle between E1 and the previous mode setting. The system eventually shuts down. E2 Open circuit or out of range Indoor Temperature Sensor.
Why is my Dometic duo thermostat not working?
But such is not the case and here are some common Duo-Therm thermostat problems and their solutions: 1. The thermostat won’t stay on or turn on – the first place to look will be your on/off switch. If there is a crack in the solder making the connection, then no power will be sent to the switch.
How to initialize a Dometic LCD thermostat?
How do I initialize a Dometic Thermostat? 1 Ensure your thermostat is Off. 2 Press the“+” button and, while holding it, also press and hold the On/Off Mode button for three seconds. 3 LCD will show ― ―. 4 Press the On/Off Mode button again to turn the system off. 5 This completes the initialization. More
How to reset Dometic duo thermostat Comfort Control?
Duo-Therm Comfort Control Reset 1 Turn the device on and the light and annunciator data are there. If they are, move on to step 2 and if they aren’t, consult your manual section 5.1. 2 Press the mode button to activate the annunciator light. 3 Then, at the same time, press the up and down buttons and hold.
Is the Dometic CT thermostat control kit safe?
The Dometic CT Thermostat Control Kit can control your Dometic heating or cooling appliances. WARNING This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to
Error Code: E1 Results from a loss of communication between the Single Zone LCD thermostat and its module board. LCD will cycle between E1 and the previous mode setting. The system eventually shuts down. E2 Open circuit or out of range Indoor Temperature Sensor.
How do I connect the szlcd control box to the thermostat?
• Connect the red/white wire routed from the SZLCD thermostat +12VDC terminal to the red/white wire from the SZLCD control relay box. • Connect the orange wire from the SZLCD thermostat COMMS terminal to the orange wire that runs from the SZLCD control relay box.
What is the Dometic single zone LCD thermostat?
Dometic 3313189.000 Single Zone LCD Thermostat and Control Kit Polar White Trailer Camper RV Comfort and control come together in one superb package. The Dometic Single Zone LCD Thermostat lets you control all interior heating and cooling from one convenient, easy-to-use location.
• Connect the red/white wire routed from the SZLCD thermostat +12VDC terminal to the red/white wire from the SZLCD control relay box. • Connect the orange wire from the SZLCD thermostat COMMS terminal to the orange wire that runs from the SZLCD control relay box.
How do you hook up a Dometic thermostat?
• Using a pair of side cutters, simply cut the, yellow, tan, blue, and green wires back to the sheath on the 7 wire cable. • Please tape the ends of these wires with black electricians tape. • Connect the red/white wire routed from the SZLCD thermostat +12VDC terminal to the red/white wire from the SZLCD control relay box.
Is the CT thermostat for an air conditioner Universal?
With an updated look to complement your décor, the CT Thermostat has a gently curved bezel in a compact & low-profile design. Air Conditioner can provide additional indoor air circulation during furnace operation. This thermostat is generally specific to the appliance it is being used with and is not universal.
