Arcing Fault Current. These two fault currents are not the same in systems rated less than 1,000V. By definition, a bolted fault has no fault impedance while the arcing fault current has impedance associated with the arc. The bolted fault, therefore, has higher fault current magnitude than the arcing fault.

Which fault current is more?

Fault current will be highest for 3L—G fault. I ( 3-phase ) = 3Vf/ Z0+Z1+Z2. During the 3L fault the lines are short circuited and then huge short circuit current flow through the generatorr at this condition generator offers sub- transient reactance which is very low so huge current can appear at the generator.

What is reduced arcing current?

When an arc occurs, the current is less than the maximum possible fault current due to the impedance of the arc. The lower the system voltage, the more significant the arc impedance is in reducing the arcing fault current.

Which fault has highest current level among the following types of faults?

Among the given faults, LLLG or 3 phase faults are most severe. LG or line to ground fault is least severe. Line to line fault is more severe than line to ground fault while double line to ground fault is one level severe than LL.

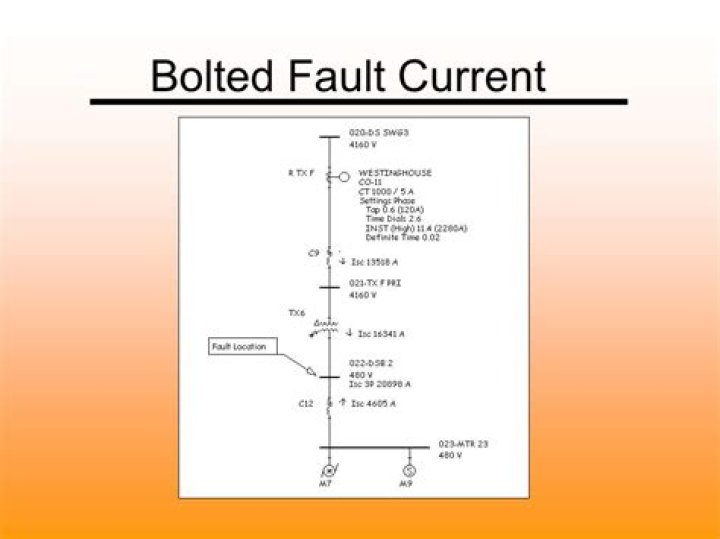

What is the bolted fault current?

The phrase “bolted fault current” is used in various locations within NFPA 70E, such as in Annex D. … A bolted fault is an extreme fault where the fault has zero impedance, thus giving the maximum prospective short-circuit current in the faulted circuit.

Which fault is the most severe one?

well a three phase (LLLG)symmetrical fault is the most severe fault in any type of system when compared to any other fault. But this also the rarest fault occurring in a system. Whereas a LG fault is the most common fault and is more severe when the fault impedance is zero that is neutral is solidly grounded.

Which fault gives rise to symmetrical fault current?

Unsymmetrical faultFault currentc. LLG fault3. I F = 3 E a Z 1 + Z 2 + Z 3

Is a symmetrical fault?

A symmetrical fault is a fault where all phases are affected so that the system remains balanced. A three-phase fault is a symmetrical fault. The other three fault types (line to ground, line to line, and two- line to ground) are called unsymmetrical or asymmetrical faults.

What causes fault current?

A fault current is an unintended, uncontrolled, high current flow through an electrical system. Fault currents are caused by very low impedance short circuits. … Causes of faults include things such as lightning strikes, animals, dirt and debris, dropped tools, corrosion, and human error.

In which type of faults given below all the three components of currents are equal?

For LG fault, all the sequence currents are equal. The type of fault that includes ground has zero-sequence current.

Article first time published on

How do you find arcing fault current?

For arcing short-circuit current calculations on systems operating at voltages between 1 kV and 15 kV, IEEE 1584 has a much simpler equation that requires only the bolted short-circuit current: log Ia = 0.00402 + 0.983 X log Ibf, and the total arcing short-circuit current is Iarcing = 10 log10(Ia).

What are the Arc flash boundaries?

What Is the Arc Flash Boundary? … The Arc Flash Boundary marks the distance from the equipment at which the Incident Energy of an arc flash would be 1.2 cal/cm². At this energy level, an unprotected worker would probably receive second-degree burns as a result of an arc flash.

Which approach limit is at the point where work is the same as making contact with the live part?

Restricted Approach: An approach limit at a distance from an exposed live part which there is an increased risk of shock. Prohibited Approach (inner boundary): A distance from an exposed part which is considered the same as making contact with the live part.

What is a solid fault or bolted fault?

A bolted fault is a short circuit fault with no fault resistance. Bolted faults deliver the highest possible fault cur-rent for a given location and system configuration, and are used in selecting equipment withstand and interrupting ratings and in the setting of protective relays.

Why is the SLG fault current larger than the three phase fault current?

This usually occurs when the zero sequence impedance for the fault is less than the positive and negative sequence impedances. … This occurs most often when a solidly grounded delta-wye transformer is located nearby.

How do you calculate 3 phase bolted fault current?

Bolted Line-To-Line Faults The line-to-line current can be calculated by multiplying the three phase value by 0.866, when the impedance Z1 = Z2.

Which of the following fault is termed as symmetrical fault?

Three-phase faults: These are also known as symmetrical faults. In this type of fault, the fault occurs on all three lines.

Which of the following faults is a symmetrical fault?

LLLG fault is symmetrical fault The unsymmetrical fault occurs in a system due to the presence of an open circuit or short circuit of transmission or distribution line.

Why symmetrical faults are more severe?

Obviously symmetrical fault is more severe than asymmetrical fault. During symmetrical fault all of the three phase of the transmission line is short circuited with each with other or all them are grounded . During this kind of fault huge short circuit current will flow from all the three phase to ground.

Which fault is least severe in power system?

A single line-to-ground (LG) fault is one of the most common faults and experiences show that 70-80 percent of the faults that occur in power system are of this type. This forms a short circuit path between the line and ground. These are very less severe faults compared to other faults.

What limits short circuit current in power system?

Series reactors are mostly used to limit the short-circuit current and to increase the impedance in the path of short-circuit current.

What are the three most common faults that occur in an electrical circuit?

There are mainly three types namely line to ground (L-G), line to line (L-L) and double line to ground (LL-G) faults. Line to ground fault (L-G) is most common fault and 65-70 percent of faults are of this type. It causes the conductor to make contact with earth or ground.

What is difference between symmetrical fault and unsymmetrical fault?

Answer: Symmetrical faults are those faults which involve with all the three phase. it simply means that symmetrical faults affect all the three phases. On the other side, unsymmetrical faults are those faults in which either one or two phase involve.

What is symmetrical fault current?

In symmetrical fault, fault currents in phases are symmetrical in the sense that their magnitudes are equal and they are equally displaced by an angle of 120°. Thus, a symmetrical fault may be assumed as a normal case but with high value of current in phases.

What is phase difference during symmetrical fault *?

In symmetrical faults, all phases are shorted to each other or to earth (L-L-L)or(L-L-L-G). The nature of this type of fault is balanced. In this type of fault,fault currents in all phases are symmetrical i.e. their magnitudes are equal and they are equally displaced by angle 120o as shown in figure.

In which fault zero sequence current is absent?

Zero-sequence fault current is absent when fault is. single-line-to ground fault.

Which fault gives all sequence current equal?

In double line to ground fault, all the sequence networks are connected in parallel. Therefore, all the sequence voltages at the fault point are equal.

In which fault is the negative and zero sequence current absent?

Three phase symmetric fault: Therefore, in a symmetrical three-phase fault, both negative and zero sequence currents are zero.

What determines arc flash rating?

Arc flash events can be dangerous and deadly. Many factors determine the severity of the event, but three values—current, time, and distance—largely determine the severity.

What causes arc flash?

In less than a second, an arc flash is initiated from a phase to ground or a phase to phase fault. It can result from accidental contact with the electrical systems, the buildup of conductive dusts, corrosion, dropped tools, or improper work procedures.

What are arc flash calculations?

The arc flash hazard calculations are based on the calculated values of fault currents and the clearing times of over-current protection devices found in the short circuit study. The requirements of the NFPA 70E include the following items in the arc flash hazard analysis: Calculation of arc flash boundary distances.
