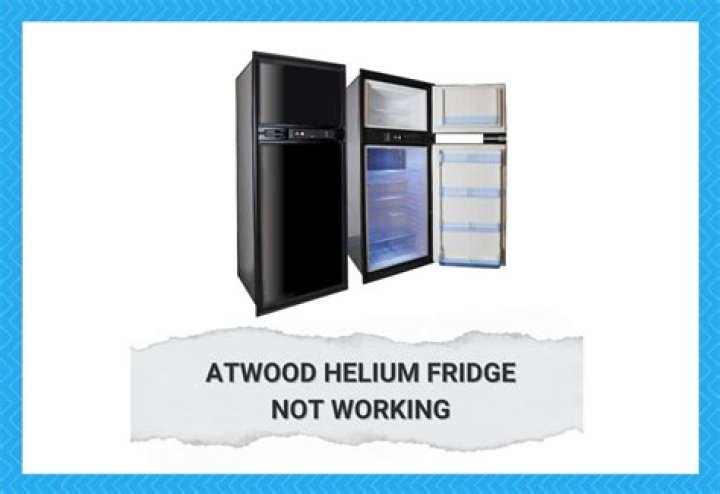

How to reset atwood helium fridge?

The CHECK indicator can be reset by turning the refrigerator off and then back on again and a new 40 second trial ignition cycle begins.

How does the he-0601 gas absorption RV refrigerator work?

The refrigerator control requires +12 volts DC to operate. There are three pushbuttons. POWER ON– Pressing this pushbutton turns the refrigerator on and off. MODE– Pressing and holding this pushbutton cycles the mode selections from AUTO, manual GAS, and manual AC. Releasing the pushbutton selects the last mode displayed.

How does gas mode work on a refrigerator?

GAS MODE The GAS mode can be selected either automatically or manually. When switching to gas operation, the refrigerator control begins a 40 second trial ignition cycle. During this period, the control opens the gas safety valve and begins sparking the burner.

What kind of gas does a camper fridge use?

These will run on propane gas or electricity depending on the model. Sometimes it’s even both. That means the fridge will include a burner jet, also known as a pilot light. The pilot light is responsible for triggering the fridge burners. That said, sometimes this doesn’t happen.

What should I do if my Atwood refrigerator goes into gas mode?

Turned to Gas mode, could hear the ignitor sparking, but nothing, Check light came on. Turned off and reset to Auto A/C. Took off outside bottom panel to see pilot/flame area, turned back to Gas mode, went outside and it was on. Went inside, no check lights, working normally.

Is there a problem with the Atwood helium refer?

It makes me wonder if it is something in the actual install, since we have been carrying the Passport from Keystone, which has been using the Atwood Helium refer for 3 years now. Never heard of even one with issues. They usually cool better than the Dometics and Norcolds…..

What kind of gas does an RV refrigerator use?

Most RV refrigerators are the absorption type, which uses a mixture of water, liquefied ammonia, hydrogen gas, and sodium chromate (the chemical used to line the internal tubes to protect them from the corrosive ammonia) in the cooling coils to transfer heat.
