How many types of heat sensors are there?

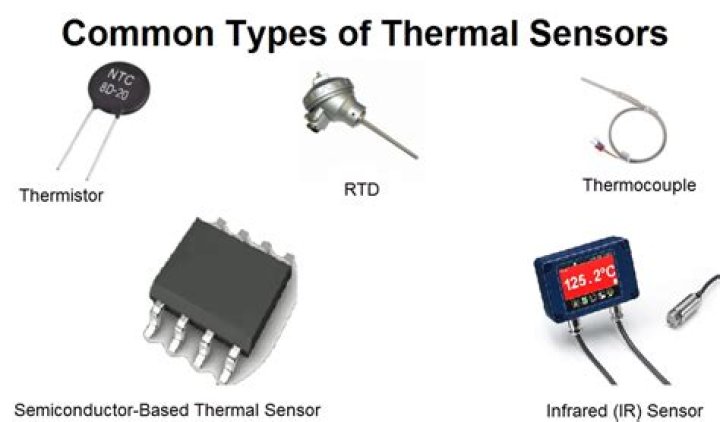

There are four types of temperature sensors that are most commonly used in modern-day electronics: thermocouples, RTDs (resistance temperature detectors), thermistors, and semiconductor based integrated circuits (IC).

What is a air cleaner temperature sensor?

The air cleaner temperature sensor collects information about the air entering the engine and sends it to the computer so that it can adjust the engine timing, as well as the fuel-to-air ratio. If the air cleaner temperature sensor detects cold air, the computer will add more fuel.

Where is the air temperature sensor located?

The intake air temperature sensor (IAT) is located in the air pipe at the back of the main entrance.

How do you clean an air temperature sensor?

To clean the intake air temp sensor: remove the duct from the throttle body and spray the sensor. Two or three shots will remove almost any oil-based contamination from it. The stuff dries fast, almost instantly.

How does the temperature sensor work on an air conditioner?

If the air is warmer then your desired setting, the sensor will activate the compressor or in other words, begin to cool the inside of the building. It also works in reverse if the air passing the sensor is lower, or at the same temperature set on your thermostat. If this happens, it will shut off the compressor.

How to test the intake air temperature sensor?

P0113: Intake air temperature sensor circuit high (voltage) input Basically, your IAT sensor may fail in one or more of these ways: Whether you find a sensor-related DTC or not, if you suspect a problem with the IAT sensor, you should: Check the sensor itself. if necessary, inspect the wiring and connectors in the sensor’s circuit.

What should the air temperature sensor resistance be?

With the engine off, measure again the sensor resistance across its terminals. At about 194 F (90 C), you should get around 2.8K ohms At about 212 F (100 C), you should get around 2K ohms You can use the following table as a general reference of temperature-resistance values.

Which is the most common type of temperature sensor?

The four most common types of temperature sensors, ranging in responsiveness and accuracy from high to low are: Negative Temperature Coefficient (NTC) Thermistors; Resistance Temperature Detectors (RTDs) Thermocouples; Semiconductor-Based Sensors

What is the code for an air temperature sensor?

P1193 is the code for a faulty inlet air temperature sensor, also known as the intake air temperature sensor. It may be possible that there is an issue with the intake air temperature sensor or with the sensor circuit….

Where is the intake air temperature sensor located?

The Intake Air Temperature (IAT) sensor of your vehicle is usually installed in the lefthand side of the intake manifold. It could be on the throttle body attached right to the intake manifold.

Where can I get an air temperature sensor replaced?

Of course, if you’d rather have someone else do the dirty work for you, the team of certified mechanics at YourMechanic offers professional intake air temperature sensor replacement. The most popular service booked by readers of this article is Air Charge Temperature Sensor Replacement.

Where is the IAT sensor on an air cleaner?

The IAT sensor is usually located in the air intake boot, but it may also be located in the air cleaner housing or intake manifold. Step 2: Disconnect the negative battery cable. Disconnect the negative battery cable and set it aside. Step 3: Remove the sensor’s electrical connector.
