How many hydraulic cylinders are needed for a stabilizer?

Depending on the design of the apparatus, each stabilizer may be operated by one or two hydraulic cylinders. The cylinders force the stabilizer arms out and down to take the apparatus off of the suspension. Hoisting Cylinders Hoisting cylinders are sometimes referred to as elevating cylinders.

What do you call the style stabilizers on a car?

These style stabilizers will be referred to as Scissor, A-Frame, or X- Style stabilizers. They extend down and away from the chassis at an angle. When deployed and in place for operation, these stabilizers viewed from the rear of the vehicle resemble an “A” formation. This style stabilizer cannot be Short Jacked!

How is hydraulic fluid used in aerial stabilization?

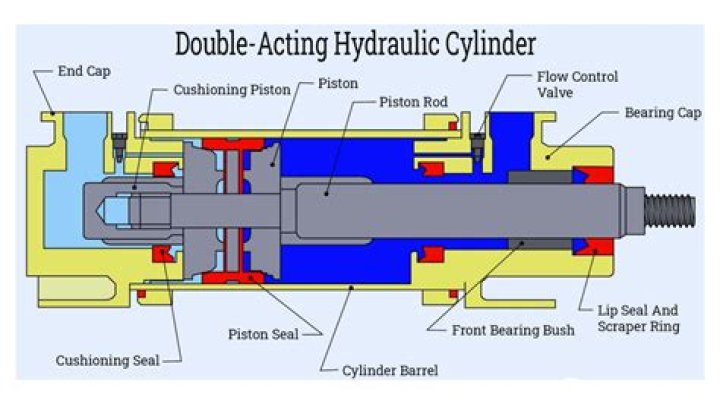

This is accomplished when pressurized hydraulic fluid is directed into a chamber created by fitting a piston into a cylindrical barrel. Hydraulic cylinders used for elevation and telescopic control of the aerial device and for operating the stabilizers are double acting.

How big is a case backhoe stabilizer cylinder?

Case 580B, 580C Stabilizer Cylinder Rod – 2 Inch Diameter 1 1/4″ x 3″ bolt & washer For a 4″ Bore Cyl. Tube

Depending on the design of the apparatus, each stabilizer may be operated by one or two hydraulic cylinders. The cylinders force the stabilizer arms out and down to take the apparatus off of the suspension. Hoisting Cylinders Hoisting cylinders are sometimes referred to as elevating cylinders.

These style stabilizers will be referred to as Scissor, A-Frame, or X- Style stabilizers. They extend down and away from the chassis at an angle. When deployed and in place for operation, these stabilizers viewed from the rear of the vehicle resemble an “A” formation. This style stabilizer cannot be Short Jacked!

This is accomplished when pressurized hydraulic fluid is directed into a chamber created by fitting a piston into a cylindrical barrel. Hydraulic cylinders used for elevation and telescopic control of the aerial device and for operating the stabilizers are double acting.

Do you have to remove wheel chocks during stabilization?

If the vehicle is lifted off of the ground during stabilization, wheel chocks must be removed before lowering or they become jammed under the tires. If using collapsible wheel chocks, ensure that they are locked and properly deployed. H-Style Jack Seagrave Rearmount Box Style Stabilizer Sutphen Aerial Tower
