Measure the total length of the area that will need scaffolding. … Divide the total length measurement by the length of a single scaffolding section. This will determine the total number of columns of scaffolding the project will require. Divide the total height measurement by the height of a single scaffolding section.

Is scaffolding measured in m2?

m2 of scaffold The Length x Height (to the top lift) measured in 1m x 1m squares. This method is not recommended for scaffolds where the Width is an important, changing factor, such as birdcages.

How tall is standard scaffolding?

Scaffold tower can be erected in all shapes and sizes. The standard dimensions are 5 foot and 7 foot long. Reaching 5 foot high all the way up to 30 feet tall.

What is a standard in scaffolding?

The standards, also called uprights, are the vertical tubes that transfer the entire weight of the structure to the ground where they rest on a square base plate to spread the load. The base plate has a shank in its centre to hold the tube and is sometimes pinned to a sole board.

How do you calculate scaffolding load?

The type of scaffolding being used is rated as light-duty, or 25 pounds per square foot. Multiply 35 square feet by 25 pounds per square foot and the scaffolding can be loaded with no more than 875 pounds.

What is the minimum width of scaffolding platform?

It is recommended that the width of a working platform shall be a minimum of 600 millimetres wide and a scaffold which is used for the deposit of materials shall be a minimum of 800 millimetres wide. A scaffold used for the support of a higher platform should be at least 1.05 metres wide.

Is code scaffolding measured?

ParameterLight Duty ScaffoldHeavy Duty ScaffoldSafe Working Load150 kg/m2300 kg/m2Number of PlatformsWork shall not be carried on more than one platform at any time.May have two working platform bays at any one time.

What are 5 requirements for scaffolding?

• Robb Tinney, Safety Advisor. Safety Management Group.
• Start with training.
• Follow the instructions.
• Consider the hazards.
• Use a tagging system.
• Inspect and re-inspect.
• One more: respect their complexity.

What is the minimum height for scaffolding?

The minimum guardrail height for scaffolds manufactured or first placed in service after January 1, 2000 is 38 inches. For all scaffolds, the maximum height is 45 inches.

What is type of scaffolding?

The 8 types of scaffoldings are trestle, steel, patented, suspended, cantilever, single, double, kwikstage scaffolding etc. To understand these Scaffoldings completely lets first learn its definition and then the uses of various Type of Scaffoldings, and their uses.

Article first time published on

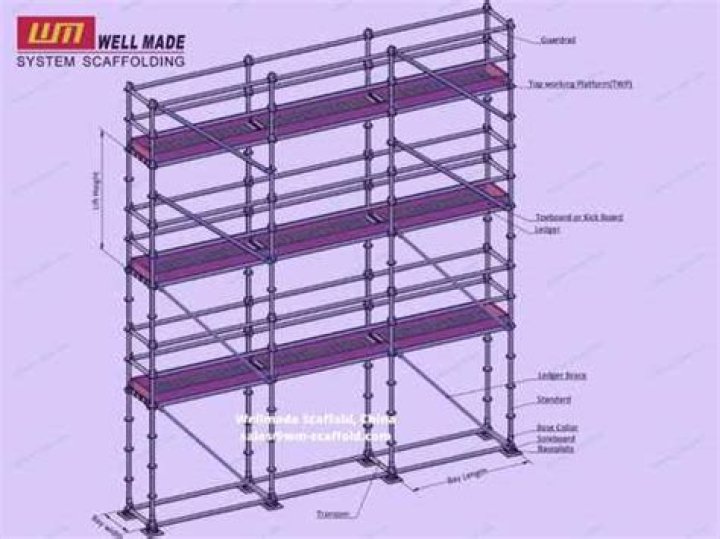

What are the components of scaffolding?

• Standards. …
• Ledgers. …
• Transoms. …
• Scaffold Tubes. …
• Scaffold Couplers. …
• Adjustable Base Plates. …
• Diagonal Braces. …
• Toe Boards.

What is the scaffolding ratio?

Scaffolding support and restraints When the height-to-base ratio of a supported scaffold is more than 4:1, guying, ties, or other restraints are required to keep it from tipping over. Restraints should be installed every 20 vertical feet for widths less than three feet or 26 feet for widths over three feet.

How wide is normal scaffolding?

The majority of scaffold boards are 225mm wide and 38mm or 63mm thick and require support every 1.2m. If the boards conform to BS 2482: 2009 they may have a maximum span of 1.5m. It is vital that all scaffold boards are checked regularly for damage or rot.

What is the maximum width to height ratio in scaffolding?

The height to width ratio for scaffold with a platform height of under 2m is a minimum of 2:1. If the platform is 2mH or over the ratio must be 3:1. This means the width of the base of the tower must be at least a ½ or 1/3 the height of the platform.

How do you calculate lifting load?

1. Step 1: Determine the Volume of the Load. Rectangle/Square: Volume = Length x Width x Height. …
2. Step 2: Determine the Material You’ll Be Lifting. The table below can be used for approximate weight values of common loads and materials: …
3. Step 3: Determine the Weight of Object.

What are the 3 load ratings of scaffolds?

They are: Light Duty – 25 pounds per square foot. Medium Duty – 50 pounds per square foot. Heavy Duty – 75 pounds per square foot.

What is the most common type of scaffolding?

Fabricated frame scaffolds are the most common type of scaffold because they are versatile, economical, and easy to use. They are frequently used in one or two tiers by residential contractors, painters, etc., but their modular frames can also be stacked several stories high for use on large-scale construction jobs.

How do you calculate area of scaffolding?

Divide the total height measurement by the height of a single scaffolding section. This will determine the total number of rows of scaffolding the project will require. Multiply the number of rows by the number of columns to find the total number of scaffold sections necessary for the project.

Is standard for work at height?

Working at Heights — Any work at height of 1.8 meter or more from the ground level or floor. Elevated working positions where the hazard of a fall exists and where there is no physical protection such as handrails.

Is code for measurement of concrete?

The method of measurement of concrete work in roads, piling, wells and tunneling is covered respectively in J~: 1200 ( Part XVII ir, IS: 1200 ( Part XXIII ):, IS: 1200 ( Part XXIV)I and IS: 1200 (Part XXV )~.

How wide is 3 board scaffold?

Traditionally they are seasoned wood and come in three thicknesses (38 mm (usual), 50 mm and 63 mm) are a standard width (225 mm).

What stops scaffolding falling down?

Employees should always wear the appropriate fall protection equipment. This will include non-slip footwear, head protection and fall protection – such as a safety harness that is attached to a solid structure. A scaffold should always be perfectly level.

What is the minimum walkway width?

A good rule of thumb is to make garden walkways at least four feet wide. This minimum will allow two people to walk comfortably side-by-side. This is especially important for paths that will get frequent use, such as the one leading to your front door. The more a path is used, the wider it should be.

Can a ladder be used on scaffold?

In most instances, scaffolds should be capable of supporting at least four times its maximum intended load. Don’t use boxes or ladders to increase your work height. … Don’t use stilts unless the guardrails on the scaffold have been extended to a height that is equal to the height of the stilts.

Do scaffolders have to wear a harness?

Industry guidance requires scaffolders to wear and use a fall arrest harness when more than 4m above ground without a safe platform to stand on and edge protection in place.

Does scaffolding need to be inspected?

A scaffold used for construction should be inspected before it is used for the first time and then every 7 days, until it is removed. It should also be inspected each time it is exposed to conditions likely to cause deterioration eg following adverse weather conditions or following substantial alteration.

Do scaffold planks need to be secured?

It merely noted that, “all planks shall be secured from movement or overlapped in accordance with §1926.451(a)(12).” Like the current standard, the 1975 standard did not address this issue (section 1926.451(a)(12), stated simply that “all planking of platforms shall be overlapped (minimum 12 inches), or secured from …

Is netting required on scaffolding?

In 2005, the work and height regulations were required that where public access to a potential danger area is necessary, then debris netting must be used at all times to catch falling materials, including dust which can cause eye injuries.

What is the first thing to be done before erecting a scaffold?

Create a Field Level Risk Assessment (FLRA) Process of erection, which can minimize the hazards associated with the overall process. Bracing plan. Material Handling procedures. Power lines.

What are the 3 types of scaffolding?

• Suspended Scaffolds.
• Supported Scaffolds.
• Aerial Lifts.

What are the four types of scaffolding?

• Independent Scaffolding:
• Single Scaffolding:
• Double Scaffolding:
• Needle Scaffolding:
