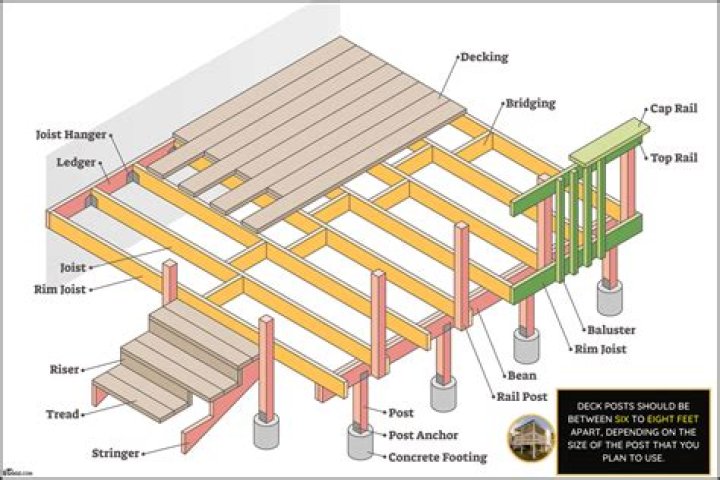

Ideal deck post spacing is 8 feet or less. The distance between deck support posts depends on the type of wood species used and the size of the joist and beam. There is no minimum span, and maximum spans can reach up to 15′.

How far apart should deck support posts be?

In general, posts should be spaced no more than 8 feet apart. Some builders position them every 4 feet for a completely rigid frame. The maximum distance between footings is determined by the size of your joist material.

How far apart should piers be for a deck?

How Many Footings Will I Need? The standard rule for footings is that for a basic deck, the larger the beam and footing size, the fewer footings you’ll need. If you’re building a simple deck, footings and posts should be placed 8 feet apart on average.

How many supports does a deck need?

Before starting to build, the first question is: How many footings do I need for a deck? For an attached 12 x 12′ deck, you’ll need at least 3 footings, plus at least 2 more if you’re planning on building stairs with it. If your deck will be a different size, it’s easy to figure out how many you’ll need.

How far apart should bearers be on a deck?

Set up the bearer spacings at a minimum of 1800mm centres with stump holes no more than 1500mm apart. The outside run of stumps will need to align with the outside edge of the deck.

How many supports do I need for a 12x16 deck?

A standard deck will need four footings parallel to the house, but they will need to be temporarily braced by 6 inch-by-6 inch posts.

How far apart should deck railing spindles be?

Balusters are the vertical guards that support the handrail. They must be installed close enough that the space between them is less than 4 inches. Most city inspectors carry a 4-inch ball with them to test the spacing.

How far apart should joists be on a deck?

Deck joists are typically spaced either every 12 inches or 16 inches on center. The maximum joist spacing you can use will depend on the size and allowable span of your joists.

How many support posts do I need for a 10x10 deck?

An attached 10’x10′ deck needs 2 posts supporting a 2-ply non-incised 2×8 beam, upgrading the beam to 3-ply using incised wood. A freestanding 10′ x10′ deck needs 4 posts, supporting two pairs of 2-ply non-incised 2×8 beam, upgrading the beam to 3-ply using incised wood.

What is the difference between joists and bearers?

Bearers are the timber or steel that attaches directly to the stumps in the ground, that supports the deck of flooring structure. Joists are the timbers that then attach across the top of the bearers, after which the timber or particle board floor is then attached.

Article first time published on

How do you evenly space a deck spindle?

1. Measure the width of the gap between the inner surfaces of the two support posts.
2. Measure the width of a single spindle.
3. Add the two figures together. …
4. Count the number of spindles to be used and add one. …
5. Divide the sum of the width by the sum of the number of spindles.

How wide should spindles be apart?

U.S. building codes mandate that balusters have no more than a 4-inch gap between them. This relatively tight amount of spacing still allows for visibility between spindles, but also stands as a safety measure to prevent small children from becoming stuck between spindles or from slipping through the balusters.

What is code for spindle spacing?

US building codes require that the space between balusters be no more than four inches—assuring that small children can’t slip through or get stuck between them. They must also be able to resist up to 50 pounds of pressure exerted over a 1-square foot area.

How often do you need a footing for a deck?

For most situations, you will want to place footings and posts less than 8′ apart. If you are planning on installing a hot tub or porch on top of your deck, you will usually need more footings and posts to support the additional loads.

Can I use 4x4 posts for a deck?

Deck posts must be a minimum of 4×4 according to the IRC but many jurisdictions require a 6×6 post as a standard. To avoid code violations, many deck builders choose the 6×6 even if the 4×4 is acceptable.

How wide should deck footings be?

FOOTINGS: – Poured concrete footings should be a minimum of 8” wider than the posts (4×4 post – 12” min. width, 6×6 post – 14” min. width), a two level deck or deck with roof – 24”x24”. – The bottom of the footings must be a minimum of 36” below finish grade level.

Can I use deck pier blocks instead of footings?

Pier blocks can be used instead of footings for a ground-level deck not requiring permits. Piers blocks can also be used if the frost level depth is less then the height of the pier block.

Should deck joists be 2x6 or 2x8?

For upper-level decks, 2×10 is recommended as the minimum size to use for strong guard post connections. 2×6 joists should only be used on ground-level decks that do not require, and will not provide for, any guards. … Most decking is not strong enough to support longer spans than 16″.

How far can a 2x6 joist span without support?

A 2×6 can support up to 50 pounds per square foot of weight without sagging with a maximum span of about 12 feet when spanning a distance horizontally, with the 2×6 standing in a vertical position. This number includes both live and dead weight.

Are 2x6 strong enough for deck joists?

S-P-F 2×6 Deck Joist Can Only Span 9’0 ″ (2.73m) Between Supports. Yes, 2×6 are limiting in span, size of the deck. But nine feet is still a good size deck. As with all deck joists, a few good practices help the joist perform better, creating a strong and durable deck.

Which way should bearers run?

The bearers rest on top on the piers and usually run the direction of the longest wall. Joists are then laid in the opposite direction.

How do you calculate spacing between boards?

Divide distance “A” by the number of spaces between objects. In our example, this is 223.5″ / 3 = 74.5″. This is the center-to-center distance of the posts (or flower pots on your porch, holes in your board, or pickets on your fence). The spacing between the objects is that distance less the width of your objects.

How high should a deck railing be?

What Is Code For Deck Railing Height? The IRC requires guardrails to be at least 36 inch in height measured from the deck surface to the top of the rail. Commercial decks attached to multifamily buildings regulated under the International Building Code (IBC) require 42 inch high guardrails.

How many deck spindles do I need?

In order to comply with building regulations and codes, balusters must be spaced no more than 4 inches apart on center. The general rule is that your railing must have three balusters per foot (every 12 inches), although you can place them closer together if you’d like.

What is the difference between balusters and spindles?

A baluster and spindle is actually almost the same thing, but the word spindle is more commonly used because it is easier to remember and say. Balusters usually rest on a footing; this could be a step, floor or deck, whereas, spindles are supported by a horizontal rail at the bottom that is attached to the posts.

How do I figure out how many spindles I need?

It is as simple as that. To calculate the number of stair spindles required, count the number of treads (steps) on the single flight, making sure not include the landing area, multiply by two, and then subtract two (as you will only require one spindle on the top and bottom steps to make room for the newel posts).
