The post holes should be about 4 feet apart.

How many concrete piers do I need for a shed?

An 8 ft x 12 ft shed will need 6 piers, 3 per long side. What is this? Typically, the span between two piers is based on the dimensions of the beams and the joists. A double 2×8 beam should be supported every 4 to 6 feet.

How wide should concrete piers be?

Pier diameter. My rule of thumb for pier diameter is “1 inch per foot of span.” Thus, a deck that spans 8 feet will stand comfortably on 8-inch-diameter piers, while a deck that spans 10 feet requires 10-inch-diameter piers.

How far apart are piers?

While 8 to 10 feet apart is a sufficient distance for foundation piers to support most structures that would sit atop a post and pier foundation, if the building is particularly tall or made of heavier materials such as brick or metal, it’s not uncommon to place the foundation piers even closer together.

How far apart should piers be on a pier and beam foundation?

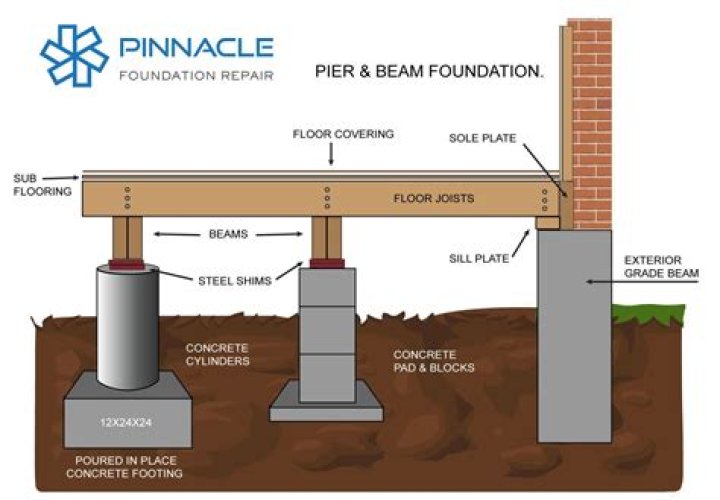

A true pier and beam foundation consists of pedestals (piers) embedded into the ground and spaced at an average of 5 to 6 feet on center with wood beams supporting the floor joists.

How do you calculate concrete piers?

To determine the load of a deck pier, you must take half the length of the joist span multiplied by half the length of the beam span (measured from pier to pier). This number is then multiplied by 50, which is the 40 psf live load, 10 psf dead load mentioned earlier.

What size sonotube for Shed?

The decision as to whether to go for 10 or 12 inch diameter tubes will depend on the ground conditions where you intend to build your shed. If your site is on sandy or gravelly ground then 10” diameter would likely be sufficient, for a more clay soil then 12” diameter would more likely be adopted.

How far apart should concrete piers be for a deck?

For most situations, you will want to place footings and posts less than 8′ apart. If you are planning on installing a hot tub or porch on top of your deck, you will usually need more footings and posts to support the additional loads. Decks with a lot of angles may also require additional footings.

How far apart should push piers be installed?

Push piers are designed to lift your foundation back to its proper alignment. The process is repeated as additional piers are placed roughly 5 to 7 feet apart in the affected area. Using multiple piers allows the weight of the structure to be evenly distributed.

How deep should concrete piers be?

Thickness. The minimum thickness for a pier is 8 inches. The minimum thickness for pier footings is 8 inches or 1-1/2 times the length of the footing projection from the pier, whichever is greater.

Article first time published on

How much weight can a concrete pier hold?

The number and size of the piers depends on how much weight the underlying soil can hold. The standard design load in the International Residential Code assumes a 40-pound live load; dead load is commonly calculated at between 10 and 15 pounds per square foot, depending on the materials used for construction.

How many piers are in a square foot?

Assuming each pier has a bearing area of 1.6 sq ft (two helices of 12” diameter each), there must be a minimum of 405,000 lbs/12,000 psf divided by 1.6 ft2/pier, or 21 piers around the perimeter. For a safety factor of 2, there should be 42 piers.

How do you level a pier foundation?

A Pier & Beam Foundation can be repaired and leveled by installing steel pilings or concrete pilings under key locations under the concrete perimeter beam. The interior is adjusted by adding or removing shims placed on top of the interior pads or columns.

How deep should Sonotubes be?

When I reach our local frost depth of 48 inches, I add about 6 inches of stone to the bottom of the hole. This provides a good base for the footing, which consists of 6 inches of concrete to tie all the rock together and an additional 6 inches for anchoring the tube form.

What size sonotube should I use?

The rule-of-thumb is to use a tube diameter 3 times the post width, therefore use a 12” diameter Sonotube for a 4×4” post.

How big should a pier be?

For sizing pier diameters for small foundations, the rule of thumb is “1 inch per foot of span.” Thus, a deck that spans 8 ft. will stand comfortably on 8-in. -diameter piers, while a deck that spans 10 ft. requires 10-in. -diameter piers.

How many bags of concrete do I need for a sonotube?

SONOTUBE# of bags required per:25 kg8″ x 4′ tube3.28″ x 8′ tube10″ x 4′ tube5.110″ x 8′ tube12″ x 4′ tube7.312″ x 8′ tube

How much does a concrete pier weigh?

Precast Concrete Pier Sizes Precast concrete piers are available in 4ft and 5ft heights and have a top diameter of 8 inches and a ground bearing diameter of 23 x 23 inches. The periods weigh 750 lbs.

What is the difference between helical piers and push piers?

The primary difference between Push Piers and Helical Piers is their installation method. Push Piers are quite literally pushed deep into the earth by the hydraulic press. … Some homes are too light to use this method, which is where helical piers can come into play.

Are push piers necessary?

Push piers are also advantageous when repairing a heavy building’s foundation. The heavier structure works well with this system because the piers are “pushed” into the ground using the building’s weight. Two-story homes, brick structures, and commercial buildings provide the needed resistance mass.

How many pier blocks do I need for a 10x10 deck?

Without knowing how I came up with the number of blocks for each deck, you could arrange them incorrectly. Or not understand why some decks have more blocks than the total weight needs. For example, a 10 x 10 floating deck needs four-deck blocks.

How many footings do I need for a 12x16 deck?

A standard deck will need four footings parallel to the house, but they will need to be temporarily braced by 6 inch-by-6 inch posts. Using doubled boards, you will then need to build beams on the top row of the posts to frame the edges of the deck. These must be topped with adjustable post caps.

Can I use deck pier blocks instead of footings?

Pier blocks can be used instead of footings for a ground-level deck not requiring permits. Piers blocks can also be used if the frost level depth is less then the height of the pier block.

What is the maximum height for a single block Pier?

Single block piers cannot exceed 36-inches, measured from top of pad or footing to top of concrete block stack, including 4-inch cap block. Maximum height reduced to 24-inches at corners.

How tall can a concrete pier be?

Piers between 36 and 80 inches (914 and 2032 mm) in height and all corner piers greater than 24 inches (610 mm) in height shall be at least 16 inches by 16 inches (406 mm by 406 mm) consisting of interlocking masonry units and shall be fully capped with minimum 4-inch (102 mm) solid masonry units or equivalent.

How long do concrete piers last?

Push piers, helical piers, and polyurethane work magic together. In conclusion – the foundation repair will last as long as the structure, over 150 years – well beyond your lifetime.

How wide is a pier?

A pier or wharf can be a maximum of 6-feet wide. The pier or wharf can have up to an 8-foot wide “T” or “L” platform at the waterward end of the 6-foot wide pier.

What is pier footing?

Piers and footings are terms used to describe parts of the concrete foundation built under a structure to support the weight of the building. When a home, commercial building or deck is constructed, the structure must rest on a concrete foundation to prevent the weight of the building from causing the ground to shift.

How much does a concrete pier block weight?

Block weight around 50 pounds each and are notched at the top to accommodate floor joist. Easy to level with gravel underneath them.

How far apart are concrete beams?

BEAM With a slab foundation, the beam is the thick part of the concrete slab, intended to support the weight above it without sagging, or bending. With the proper steel reinforcement, most slab beams, also called the grade beam, will not sag with supports no further than 8 feet apart, depending on the weight.
