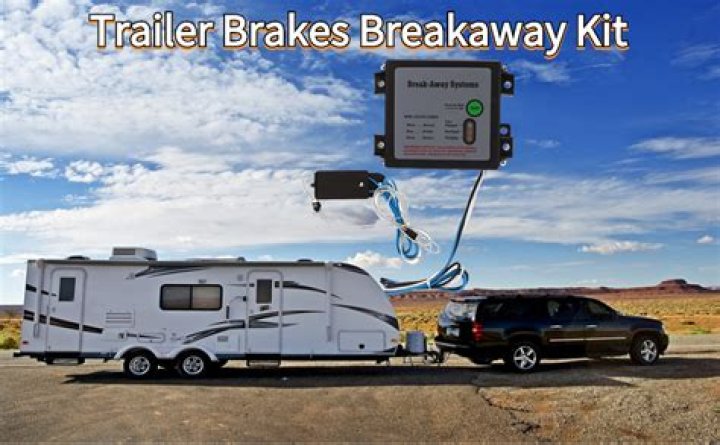

How does the trailer break away system work?
How does the trailer break away system work?
Locate the exterior breakaway switch & pull the black plastic pin out (you may need a pliers, but be careful no to break the pin). Slowly move the tow vehicle forward. If the trailer brakes lock up & the wheels won’t turn, YOUR BATTERY IS CHARGED and your breakaway system is working! Re-insert the pin into the switch.
What happens if you dont set your trailer brakes?
Too much power to the trailer brakes, then the trailer brakes get the job of slowing or stopping the tow vehicle. Not set properly, then you’ll be needlessly wearing out the brake system of one or the other, and there’s a costly and unsafe proposition for sure.
How can I adjust my electric trailer brakes?
Here are 10 ways to adjust electric trailer brakes. Later, air brakes and surge brakes will be addressed. This is a simple process, but it does take some time. If your trailer brakes aren’t properly adjusted, it will put a strain on your vehicle’s brakes because the vehicle will be doing all the work.
Can a trailer break away from a tow vehicle?
If the cable is not attached to the tow vehicle, the breakaway system will not work in case the trailer becomes disconnected from the tow vehicle. Pulling the pin out ANYTIME depletes the battery, and that’s why we recommend clipping the cable to the tow vehicle with it’s own clip.
What does it mean when your trailer is disconnected?
All that will do is tell you that the brakes are not being powered correctly. Usually, when the IBC faults, it is not seeing enough resistance in the brake line–making it think the trailer is disconnected–and that usually is a ground wire somewhere on the trailer…
How to terminate power to the trailer brakes when towing?
The easiest option would be to simply unplug your brake controller. If the brake controller is disconnected, the brakes will not receive power. If your brake controller was hardwired and cannot be unplugged, you could cut the brake output wire anywhere between the brake controller and the trailer brakes.
Where is the brake output wire on a trailer?
If your brake controller was hardwired and cannot be unplugged, you could cut the brake output wire anywhere between the brake controller and the trailer brakes. The brake output wire is the blue wire coming from the brake controller.
What causes trailer brake controller to go off?
The trailer brake controller monitors ONLY the brake wiring. This includes the feed and ground. It sends a small pulse signal out. This causes the brake magnets to begin to magnetize. The pulse ends and the magnetic field collapses causing a flyback voltage.
