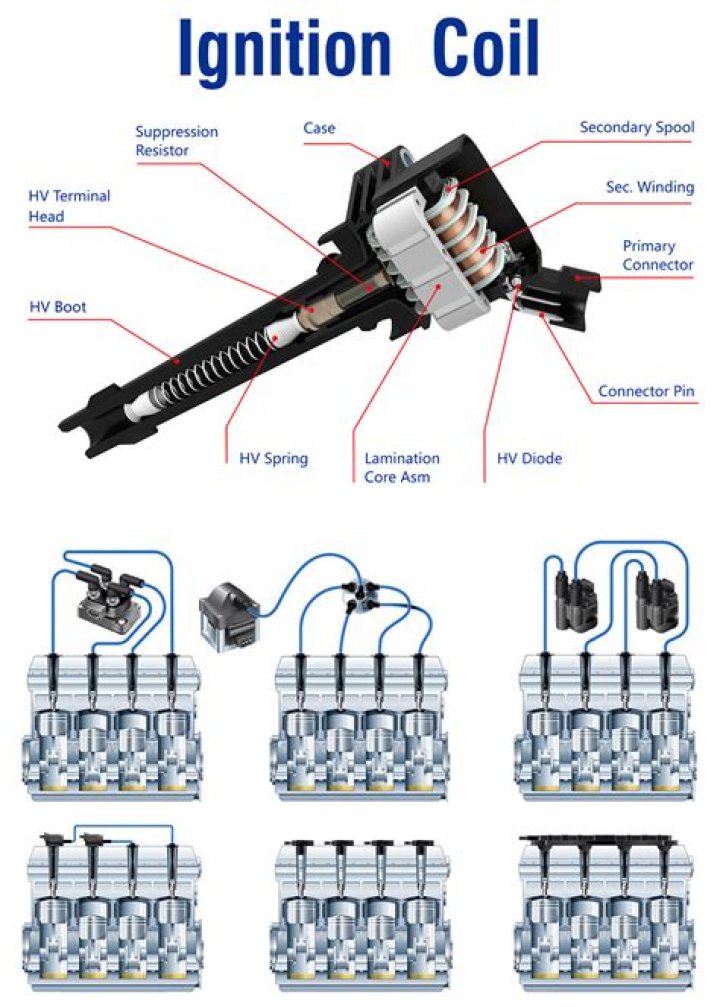

How does the ignition coil work on a Chrysler fourforty?

This induces a small electrical pulse into the coil, which is sent to the ECU. The ECU acts as an amplifier for these pulses and in turn sends a much larger pulse to the ignition coil. The coil acts the same way as in a points type system and produces the high voltage needed to fire the spark plugs. Application

How do you remove a coil from an ignition coil?

Use a nut driver or a small wrench to loosen the securing nuts on the coil terminals and remove the leads; the positive side of the coil has a condenser lead attached in addition to a positive lead. Then loosen the bottom clamp screw, pull out the center cable that goes to the distributor and remove the coil.

What should the resistance be on a Delco ignition coil?

This reading of 8.84 does indicate that the coil’s secondary windings are not putting out as much voltage as they should; the minimum acceptable resistance reading here should be 11.00, with approximately 13.5 being normal. Here’s the primary reading on the new replacement GM Delco coil before I installed it.

What kind of ignition coil does a corvette have?

The coils on early Corvettes are black cylindrical devices; starting in 1975 the coil per se as a discrete cylindrical device was abandoned when GM made the switch to HEI breakerless ignition systems.

Where do the wires go in a Mopar ignition switch?

So, two wires from an ordinary Mopar electronic distributor go to two RH terminals, upper left B gets connected to coil (+) primary so that it gets +12V from ignition switch (no ballast resistor in between!), and C goes to coil (-) primary.

When do you swap the pickup coil wire?

Which pickup coil wire goes to which module terminal is determined by trial and error: If engine is difficult to start or runs poorly after installation, you swap these two wires.

Use a nut driver or a small wrench to loosen the securing nuts on the coil terminals and remove the leads; the positive side of the coil has a condenser lead attached in addition to a positive lead. Then loosen the bottom clamp screw, pull out the center cable that goes to the distributor and remove the coil.

What kind of ignition coil does a GM car use?

If you’d like to mount the module off by itself somewhere, then a good coil option is the stock external-mount GM HEI coil used on 1975-84 GM cars (mostly with 4-cylinder engines). The coil is a Standard/BlueStreak DR35. One tidy option is to use the combination HEI coil/module/mounting bracket.
