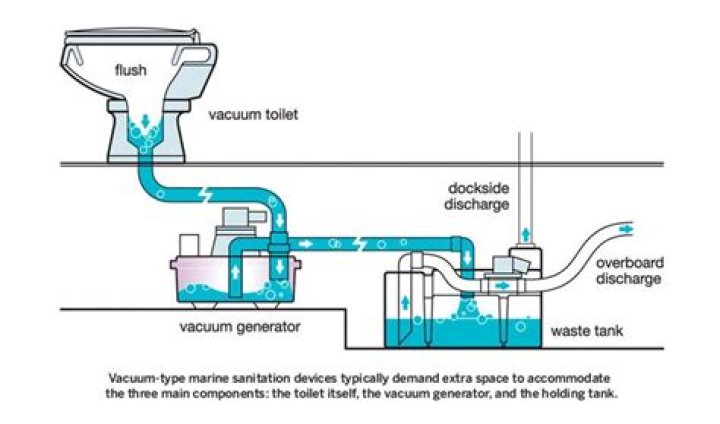

How does a VacuFlush head work?

A boat with a VacuFlush system enhances the resale due to the long running reputation. When the toilet is flushed by pushing down on the foot lever, the vacuum energy stored in the system is released. The loss of pressure in the vacuum tank causes the integral pressure switch to activate the vacuum pump.

How does a manual marine toilet work?

Manual flush involves using a hand pump that is built into the side of the toilet. Moving the hand pump allows you to pump waste out of the toilet and pump fresh water in, draining the toilet using a switch valve. Electric marine toilets don’t require any manual pumping, the process happens with the push of a button.

Where does toilet waste go on a boat?

The pump-out toilet comes either as a ‘Dump-Through’ unit (where the tank sits directly beneath the toilet) or with a remote tank, where the waste has to be transported away by pumps or vacuums via a pipe network.

How long does it take to flush a vacuflush toilet?

Flush water into system by depressing flush lever until water starts flowing to the vacuum pump, approxi- mately 15 seconds. The vacuum pump will run for approximately 60 to 90 seconds until system reaches operating vacuum level and then will shut off.

Is there a vacuum breaker in a vacuflush toilet?

VacuFlush toilets are equipped with an integral vacuum breaker which prevents the possible contamination of the potable water supply. Vacuum Tank: The vacuum tank stores vacuum energy. System vacuum level is monitored by a vacuum switch located on the vacuum tank.

When to use a vacuflush system on a boat?

The VacuFlush system is a holding tank or Type III system as defined by the U.S. Coast Guard. Type III systems are designed to permit operation of the toilet without the direct discharge of untreated waste after every flush. This means onboard toilet facilities can be used when the boat is near swimmers, beaches or shellfish beds.

What to do if your vacuum does not shut off?

If your vacuum pump will not shut off, isolate the toilet by shutting off the water, then insert the vacuum tester into the 1” orifice of the funnel in the bottom of the toilet. If the vacuum exceeds 10” and the switch does not shut off, replace the vacuum switch.

How to unclog a central VAC at home?

How to Unclog a Central Vacuum 1 Determine where your hose is blocked. If you get low suction at all of your outlets, it means your blockage is either… 2 To unclog your central vac., just stick the hose from your portable vacuum into the offending central vac. outlet and… More

How do you get a clog out of a vacuum cleaner?

If at least one of them has a problem sucking dirt, then the clog is clearly located at the attachment hose. Removing blockages in hoses is very easy: all you need to use is a broom handle or a bent hanger to push the clog out. What about cleaning out clogs for other parts of the vacuum cleaner?

What should I do if my central vacuum hose is clogged?

Plumbers snake. Many times when a central vacuum hose is clogged the owner will assume that the entire system is plugged. However, that is most often not the case. If you are experiencing suction problems with your central vacuum system, you should check the hose for clogs before making the call to have a repairman come out.

How do you get a clog out of a drain?

Hose out leftover debris. Once the clog has been removed, spray the hose down your drain pipe at full blast. Doing so will simultaneously remove any lingering debris that is stuck in the pipe and clean off the auger. Pull the auger cable back out of the main line drain.
