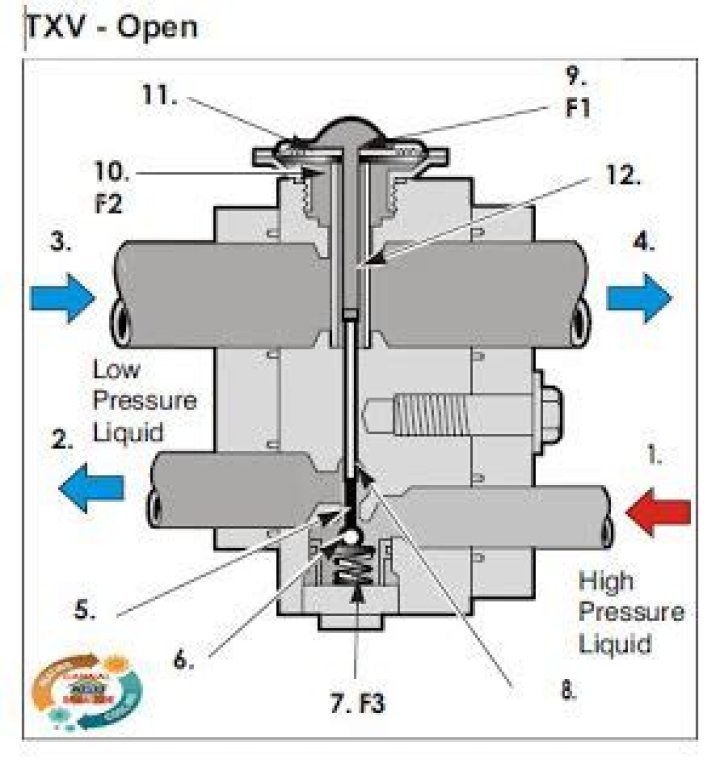

A block style expansion valve uses a temperature sensing disc rather than a remote sensing bulb. A block expansion valve has both the liquid and vapor lines running through it. The sensing disc detect changes in exiting gas temperature and moves a tapered needle into or out of a metering port.

How do you test a block expansion valve?

You need to raise the temperature of the sensing bulb to determine if the expansion valve is activating. One easy way is to simply drop it in a cup of warm water. Otherwise, you can simply hold the bulb in your hand throughout the duration of the test.

What are three types of expansion valves?

• Thermal Expansion Valves (TEVs)
• Manual Valves.
• Capillary Tubes.
• Automatic Valves.
• Electronic Expansion Valves.
• Float Valves.

What is a thermal expansion block valve?

A thermal expansion valve or thermostatic expansion valve (often abbreviated as TEV, TXV, or TX valve) is a component in vapor-compression refrigeration and air conditioning systems that controls the amount of refrigerant released into the evaporator and is intended to regulate the superheat of the refrigerant that …

What happens if expansion valve is stuck open?

If the expansion valve is stuck open or clogged, the AC system will not cool properly. A clogged valve will lead to too little refrigerant, increasing the pressure in the system and causing the AC compressor to overheat.

What causes an expansion valve to fail?

As the expansion valve operates under high pressures and is temperature sensitive, improper working conditions, as well as impurities inside the loop, can cause its deregulation and malfunction. If the expansion valve is stuck open or clogged, the AC system won’t cool properly.

How do I know if my expansion valve is working?

The most recognizable symptom of a bad A/C expansion valve is when you turn on your air conditioner and warm air starts blowing out of the vents. This would obviously mean that not enough refrigerant is making its way to the core of the evaporator.

How do you diagnose a bad thermal expansion valve?

1. Low evaporator pressure.
2. High evaporator and compressor superheats.
3. Low compressor amp draw.
4. Short cycling on the low-pressure control.
5. Higher than normal discharge temperatures.
6. Low condensing pressure.
7. Low condenser split.
8. Normal to high condenser subcooling.

How does an expansion valve reduce pressure?

Refrigerant vapour coming from condenser enters a constricted tube which is the expansion valve. Now similar to the convergent nozzle, the velocity of refrigerant increases which obviously lowers its pressure. Since Temperature is directly related to pressure, the refrigerant’s temperature decreases.

What are different types of expansion valve?

• Thermal expansion valves (TEVs)
• Manual valves.
• Capillary tubes.
• Automatic valves.
• Electronic expansion valves.
• Low-pressure float valves.
• High-pressure float valves.

Article first time published on

Is expansion valve a capillary tube?

Although these two systems both control the flow of refrigerant, they work in different ways. A thermal expansion valve can respond to the environment by increasing or decreasing the flow of refrigerant as necessary, while a capillary tube is a fixed system that does not fluctuate with heat load changes.

What is superheat in HVAC?

Superheat occurs when you heat vapor above its boiling point. Let’s say that a refrigerant boils at 40 degrees Fahrenheit at a low pressure in the evaporator. … Superheat is critical in HVAC because it ensures the liquid refrigerant is boiled off before it leaves the evaporator and heads to the compressor.

What makes the expansion valve freeze up?

If moisture enters the air conditioning system, it freezes at the system’s metering device. … If the drier becomes saturated with moisture, it releases it at the hottest times of the day. This moisture freezes in the expansion valve and deprives the evaporator of refrigerant.

How do you test an electronic expansion valve?

Perform an “Closed Valve Test” per Service Facts instructions. Remove the stepper motor from the EEV 15 seconds after jumping the pins. If the valve is closed and refrigerant continues to flow, then check valve is leaking. Use a pinch off tool and crimp the tubing between the check valve & EEV.

Can expansion valve leak?

Signs of Expansion Valve Trouble Valves that are attached improperly to the suction line can cause leaks and misinterpret pressure readings.

How do you adjust an expansion valve?

To adjust the static superheat, turn the valve’s setting stem. Turning clockwise increases static superheat and effectively reduces refrigerant flow through the valve. Turning counterclockwise reduces static superheat and increases refrigerant flow.

How do you test an AC expansion valve?

1. Make sure the AC unit is plugged in or, if it is in an automobile, turn the vehicle on. …
2. Use the manual to locate the thermostatic expansion valve. …
3. Lift the sensing bulb from the suction bulb well. …
4. Hold the sensing bulb in your hands for two minutes or place it in warm water.

What causes a TXV to overfeed?

A TXV can overfeed from restricted air flow, return air blocked, dirty evaporator coil, dirty air filter, or a bad indoor fan. As you can see, there are many outside factors that can cause a TXV to have exhibit problems other than the TXV itself. While it can be done, it is difficult to check a TXV.

Why is my high side pressure high?

Higher than normal air pressure is usually a consequence of two situations. One, your AC system might be facing limited or no airflow through the condenser. This, in turn, might be a consequence of bad condenser fan motor. … Second, the other reason for a high-pressure reading can be an overcharged system.

Why does temperature decrease in expansion valve?

Through expansion valve the refrigerant gets is expanded or throttle. This irreveraible process is so rapid that there is no heat or work transfer but only drop in pressure. During sudden drop in pressure corresponding ky there is drop in temperature. This is isenthalpic process (constant enthalpy process).

Does an expansion valve decrease temperature?

The liquid refrigerant flowing out of the condenser exists in a high-pressure, medium temperature state. … The expansion value reduces the temperature to where it needs to be. Expansion Valve Function. To understand how the expansion valve works, you must realize that temperature and pressure have a direct relationship.

Does an expansion valve change enthalpy?

thus the enthalpy change during the process is zero i.e. enthalpy remains constant throughout the process.

Why does my hot water heater overflow keep discharging water?

Causes of Excess Pressure in a Water Heater Since water expands as it’s heated, higher-temperature water occupies more volume, which, in the confines of a water heater, results in increased pressure. If the pressure increases too much, your relief valve will activate, releasing water through the drain pipe.

Why does my expansion tank keep filling up?

Not Enough Air in Diaphragm Tank The most common expansion tank problem in a diaphragm tank is losing small amounts of air through the valve. … If the tank does not hold its air pressure after you complete this fix or it fills with excess water, you may need to replace the diaphragm.

What happens when expansion tank fails?

Oftenthe diaphragm dividing the two systems will fail, causing the two systems to become one. When this happens, the expansion tank turns into a “dead leg” that will eventually cause damage and premature failure to your water heater.

What are good pressure readings for 410A?

For R-410A, a working pressure capability of at least 400 psi is recommended (this includes recovery cylinders). Standard DOT recovery cylinders rated for 350 psi should not be used.

What does low Subcool mean?

Low Subcooling is an indication that not enough refrigerant is contained or “packed” in the condenser. This can be due to undercharge, poor compression, or a metering device oversized or failing open (overfeeding).

What types of expansion valves are there in HVAC?

In refrigeration and air conditioning applications, there are two main types of expansion valves: thermostatic expansion valves (TXVs), and automatic, or constant-pressure, expansion valves (AXVs).

How many types of float valve expansion are there?

There are basically seven types of refrigerant expansion devices. These are: Hand (manual) expansion valves. Capillary Tubes.

What are the three most popular types of expansion devices?

• Capillary Tube. …
• Automatic Expansion Valve (AEV) …
• Thermostatic Expansion Valve (TXV)

How does an expansion valve work?

The expansion valve removes pressure from the liquid refrigerant to allow expansion or change of state from a liquid to a vapor in the evaporator. Under a greatly reduced pressure the liquid refrigerant is at its coldest as it leaves the expansion valve and enters the evaporator. …
