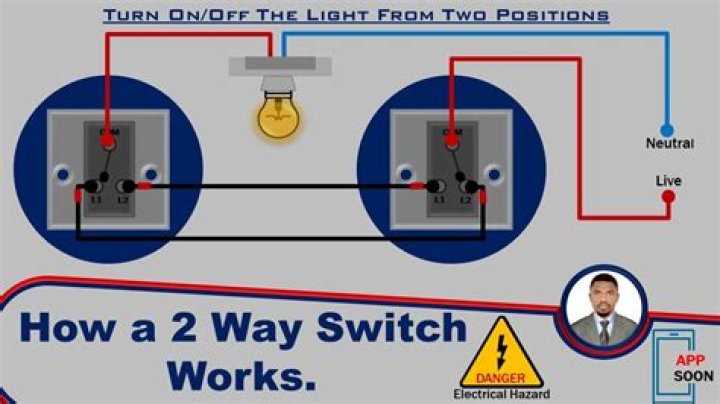

Standard 2 Way Switch Wiring The L1 terminals of both the switches are connected to line (or phase or live) of the AC Supply. The L2 terminals of both the switches are connected to one terminal of the light bulb, while the other terminal of the light bulb is connected to the neutral of the AC power supply.

How does a two way light switch work UK?

Standard 2 Way Switch Wiring The L1 terminals of both the switches are connected to line (or phase or live) of the AC Supply. The L2 terminals of both the switches are connected to one terminal of the light bulb, while the other terminal of the light bulb is connected to the neutral of the AC power supply.

How do you hook up two lights to one switch?

Run your cable from the first light to the second light. Connect the black wire from the switch to the black wire from the first light and the black wire coming from the second light. Attach the white from the second light to the white from the power supply.

What is the common wire on a 2 way switch?

When wiring a 2-way switch circuit, all you’re really doing is controlling the power flow (Switching off/on) to the load (a light, lamp, outlet, ceiling fan etc..) Now a typical circuit will contain a 3-wire cable known as romex. The cable consist of a black wire, a white wire and a bare copper wire.

Is L1 and L2 the same as 1 way and 2 way?

Two way switching means you can switch the same light fixture from two switches that are located in different sides of a room. Two way switches have a COM terminal as well as L1 and L2 terminals. When L1 is off L2 would be on. When L1 is on L2 would be off.

What kind of switch do I need for a 2 way switch?

– Turning a light on and off from 2 different locations requires a 2-way switching circuit. – A 2-way switching circuit requires 2 SPDT switches.

Can I use a 2 way switch for a 1 way light?

Yes it can be used. You need to com and either of the other two terminals normally S1. more often than not if you ask for a one-way switch these days you’ll be given a two-way. as a two-way can be used as a one-way some manufacturers no longer make one-way switches.

What Colour is Live Wire UK?

What colour is the live wire? Live wire cable colours in the UK and Europe are brown.

Does my light switch have a neutral wire UK?

Count them. If there are two conductors and an earth in the switch then there is no neutral. One conductor will be permanent line and the other will be switched line. If there are three or more conductors and an earth in the switch then there is most likely a neutral.

What Colours are electrical wires UK?

The new electrical wiring colours in the UK are green and yellow for the earth wire; brown for the live wire, and blue for the neutral wire. The old electrical wiring colours in the UK are green and yellow (or bare) for the earth wire; red for the live wire, and black for the neutral wire.

Article first time published on

What is the difference between 1 way and 2 way light switch?

1 way is an on/off switch and means there’s only one place you can turn your light on or off. This is the most common kind of switch found in most homes. Most 2 way switches can also be used as a 1 way on/off switch. 2 way means there’s another switch controlling the same light.

How do you wire multiple lights to one switch?

You can do this light switch wiring in one of two ways. The most common is to daisy-chain the light fixtures by connecting them to each other and hooking the first one up to the switch. The other way to wire multiple lights to one switch is to connect all of them directly to the switch in a “home run” configuration.

What Colour wire goes in L2?

Brown for L1, Black for L2 and Grey for common. Result is Red (brown) is permant L.

What happens if a light switch doesn't have a ground wire?

Grounding light switches have become commonplace, used as a preventative safety measure. It is perfectly legal to wire a light switch without the inclusion of a ground.

What is the neutral wire for UK?

The blue wire is known as the neutral wire and its job is to take electricity away from an appliance. The brown cable – known as the live wire – actually delivers electricity to your appliance. Together, these two wires form a complete electric circuit.

Can I wire a socket from another socket?

The easiest way of connecting into a ring circuit is to run a spur cable from the terminals of an existing socket – but you can’t connect it to any socket. The IEE Wiring Regulations are very specific about this. You mustn’t run a spur from a socket that’s already on a spur, or that already supplies a spur.

What electrical work can I do myself 2021 UK?

However, you are still allowed to carry out some work yourself without notifying Building Control. Minor repairs and maintenance are permitted, as well as ‘like for like’ replacements, such as changing existing sockets, switches and ceiling pendants or even replacing damaged cables.
