How do you reset a Norcold n841?

Reset Procedure #1

Turn OFF the refrigerator.
Disconnect the following from power board:
Remove the power board cover.
Reconnect a, b, c, & d disconnected in step 2.
Turn ON the refrigerator.
Locate Pin 15 on 16 pin connector (P1).

Where can I find the Norcold N811 and N821?

Welcome to our Fridge Defend installation and Norcold N811, N820, N821, N823, N841, N842, NX811, NX841, NXA811, & NXA841 troubleshooting page. Before reading this page, please click here and view our wiring video.

How does the Norcold refrigerator work in auto mode?

I have a Norcold N811RT S/N 16620149 it cools fine on AC in auto but will not work on gas, either in auto mode or if the switch is moved to gas the green light will flash 4 times. If I turn it off and then back on in auto with shore power it will cool and work.

What is the service manual for a Norcold 3163 refrigerator?

The service manual for the Norcold 3163 (and other models) has detailed troubleshooting flowcharts and wiring diagrams to diagnose common electronic control system problems for all modes using only a volt meter and taking measurements at points that are readily accessible at the top of the refrigerator.

How do I reset Norcold when no co flashes?

In order to reset Norcold fridges when the No Co code flashes one has to take off the cover of the fridge controller. The first time the “no co” fault code appears on the optical control assembly, it can be cleared by the user by turning the refrigerator OFF and then back ON.

How to troubleshoot a Norcold RV refrigerator?

Keep in mind that the Norcold refrigerator needs full battery power to ignite. If battery power drops below 12 volts, your refrigerator may have a hard time lighting. Also, check to ensure that your refrigerator is grounded to the chassis, and also that the ground wire is connected to the refrigerator. Remove air from propane gas supply lines.

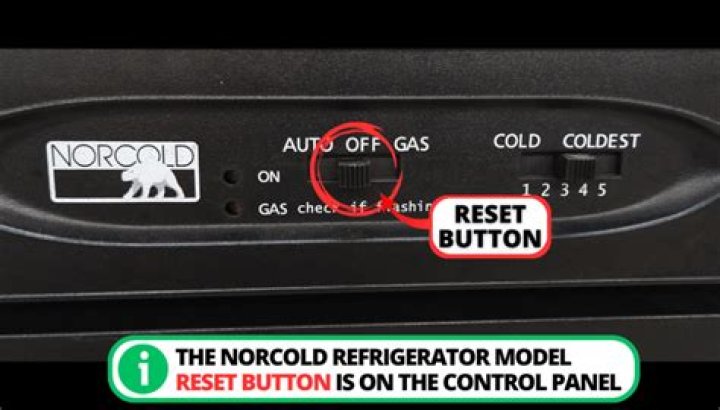

Where is the reset button on a Norcold?

Locate Pin 15 on 16 pin connector (P1). Pin 15 is the empty socket to the right of the white/violet wire on the top row. See figure to the left. 7. Using an insulated jumper wire, short Pin 15 to the power board ground lug for 10 – 15 seconds. A click sound will indicate when the controls have reset.
