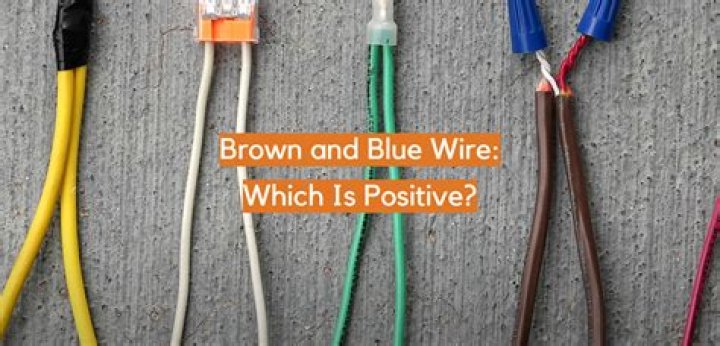

How do you know which color wire is positive?
How do you know which color wire is positive?
Wire Colors for DC Power The coloring is as follows: Positive – The wire for the positive current is red. Negative – The wire for the negative current is black. Ground – The ground wire (if present) will be white or grey.
How do you identify different wires?
Color is usually the best way to identify electrical wiring. All wiring looks the same on the inside, but the outside coverings come in different colors. If the person who installed the wiring followed regulations, the house wiring colors should give away the identity of the hot and neutral wires.
What are the different colors on wires indicates?
US AC power circuit wiring color codes The protective ground is green or green with yellow stripe. The neutral is white, the hot (live or active) single phase wires are black , and red in the case of a second active. Three-phase lines are red, black, and blue.
What color is the line wire?
black
The color for the Line wire is usually black and the Load wire is usually red, black, or blue (less common). If you notice that both are the same color for you, please use the guideline below to determine which wire is which.
Are there different colors for electrical wiring standards?
There are various such standards. IEC uses one set of colors, NFPA79 uses another. Depends on what part of the world you are in. Here in the US only certain colors are specified by the electrical code (NEC or NFPA70) (such as green or bare for ground and white or gray for neutral).
Who is Larry Campbell and what are the colors of electrical wiring?
Larry Campbell is an electrical contractor with 36 years of experience in residential and light commercial electrical wiring. Opening up an outlet or light switch box, you might be confronted with a bewildering array of wires of different colors. Black, white, bare copper, and other colors closely intermingle, yet each one has a specific purpose.
What are the colors of the National electrial code?
The national electrial code does not address wire colors except to identify ground (green), grounded neutral (white), high voltage neutral (gray), and the highest voltage lead of a three phase delta four wire system (orange). You need a copy of the JIC electrical standards.
Is there a color code for ground wire?
YOU ARE 100% RIGHT! The national electrial code does not address wire colors except to identify ground (green), grounded neutral (white), high voltage neutral (gray), and the highest voltage lead of a three phase delta four wire system (orange). You need a copy of the JIC electrical standards.
What are the color codes for DC wiring?
European (IEC) Wire Color Codes for DC Supply are as follows: 2 Wire Ungrounded DC Supply Positive (+ve) – Brown Negative (-ve) – Grey
What are the color codes for 120 volt AC?
120/208/240 Volt AC Wiring Color Codes in USA. 1 Single Phase, Line (Hot) – Black or Red. 2 3 Phase, Phase 1 – Black. 3 3 Phase, Phase 2 – Red. 4 3 Phase, Phase 3 – Blue. 5 Neutral – White. 6 Ground – Green, Green with Yellow Stripe, or Bare Wire Fig. 2 – 120/208/240 Volt AC Wiring Color Codes in USA.
What are the color codes for AC cables in Europe?
Wire Color Codes in Europe (IEC) for AC supply are as follows: European (IEC) Wire Color Codes for DC Supply are as follows: The Canadian Electrical Code (CEC) regulates electrical wiring color coding in Canada. The AC power cable color code is nearly similar to the code used in the USA except exclusion of bare copper from ground wire.
What are the colors of the thermostat wires?
This thermostat wire color code will help homeowners understand the anatomy of their thermostat: 1 White wires 2 Yellow wires 3 Green wires 4 Orange wires 5 Red or “Rc” wires: Industry standard for geothermal heat pumps 6 Rh wires: Industry standard for geothermal heat pumps 7 Blue or “C” wires
