How do you hook up electric trailer brakes?

Installing Electric Brakes on Your Trailer

1. First, you must remove your existing hub.
2. Next, Find the CORRECT backing plate.
3. Install the lock washers under the nuts and tighten.
4. Make sure the outer bearing is greased, and put in the hub, then the washer, and then the nut.
5. Insert the cotter pin.

Can I tow a trailer with electric brakes?

Hear this out loudPauseElectronic brakes are most commonly used on caravans and trailers over 750kg and are legally required on all caravans and trailers where the GTM is more than 2000kg. Remember that if you are considering electronic brakes, you will need to install a control unit in the tow vehicle.

What do I need to tow a trailer with electric brakes?

Hear this out loudPauseIf your trailer is equipped with electric brakes, you will need a brake controller to tow. However, some trailers are equipped with surge brakes. These are a hydraulic braking system that uses the trailer’s own weight and momentum to actuate the brakes.

How do you wire trailer lights with electric brakes?

How to Wire a Trailer With Lights & Brakes

1. Install the 6 conductor cable in the trailer frame.
2. Connect the green wire to the right turn/stop lamp.
3. Connect the yellow wire to the left turn/stop lamp.
4. Connect the blue wire to the trailer brakes.

How do I know if my trailer has electric brakes?

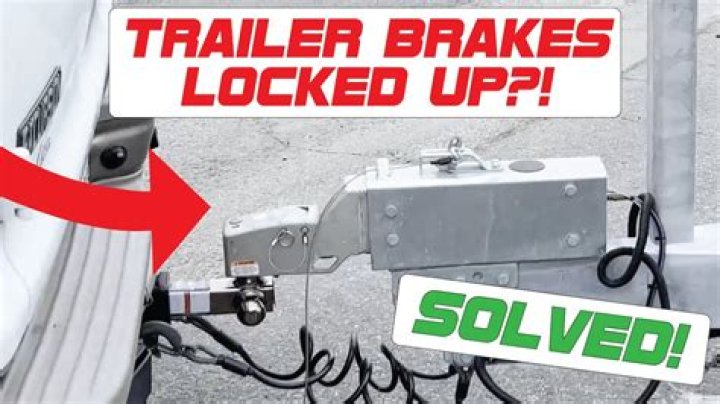

Hear this out loudPauseA traditional actuator, like the Dexter Zinc-Plated Brake Actuator # 099-175-00, or an Electric Over Hydraulic (EOH) actuator, like the HydraStar Electric Over Hydraulic Actuator # HBA16, would mean that you have hydraulic brakes. If your trailer has brakes, but no actuator, chances are that it has electric brakes.

Can a standard trailer hook up to an electric brake controller?

Most conventional controllers are compatible with either 12-volt or 24-volt systems, but not both. Elecbrakes ensures maximum compatibility by working with either 12 or 24-volt tow vehicles. Can I tow a trailer with electric brakes without an electric brake controller? No.

How do you mount a brake controller on a tow car?

Mount the electric brake controller onto the trailer draw bar. Plug the electric brake controller into the trailer cable and the tow car socket. 1. Mount the device onto the trailer draw bar

How do you connect elecbrakes to a trailer?

The difference is that it comes with waterproof connectors and the adaptors are pre-wired. This takes away any requirement for the user to splice Elecbrakes into the trailer’s existing circuits. To connect your device simply plug the trailer lead into the pre-wired adaptor and then plug the adaptor into the tow-vehicle’s trailer port.

Can You tow a trailer without a brake?

Yes, in theory you can tow a trailer with electric brakes without a brake controller. However, without a brake controller in place, towing the trailer is going to become a lot more dangerous. What is a Brake Controller?

How does a trailer brake control cable work?

In older controllers, the power provided to the trailer brakes is supplied through a separate cable. With this setup, a power cable runs from the battery to the dash mounted or engine bay mounted controller. A control cable then runs all the way through the vehicle to the trailer connector and then onwards to the trailer brakes.

Where to wire electric brakes on a tandem axle trailer?

It does not matter which wire is used for power or ground because they are not polarized. If the trailer wiring is running down the left side of the trailer, then we splice the left side brake assemblies into the main electric brake power wire coming from the 7-way connector.

Can You tow a trailer without electric brakes?

This is a major safety benefit on longer and heavier trailers. In conclusion, if your trailer has electric brakes on it, you should properly equip the tow vehicle with a brake controller so that you can use the brakes on the trailer, and have a safer, more enjoyable towing experience.

What kind of wiring do I need for a gooseneck trailer?

6-pin trailer wiring introduces two new functions, a wire for connecting trailer brakes and a wire for +12-volt auxiliary power. 6-way wiring is most common on gooseneck trailers and allows for use with a brake controller. The 7-way round trailer plug is to be distinguished from 7-way RV blade plugs.
