If only one variable appears squared, then you have a parabola. If the squared x term and the squared y term are opposite signs (one is positive and one is negative), then you have a hyperbola.

How do you know if its a hyperbola?

If only one variable appears squared, then you have a parabola. If the squared x term and the squared y term are opposite signs (one is positive and one is negative), then you have a hyperbola.

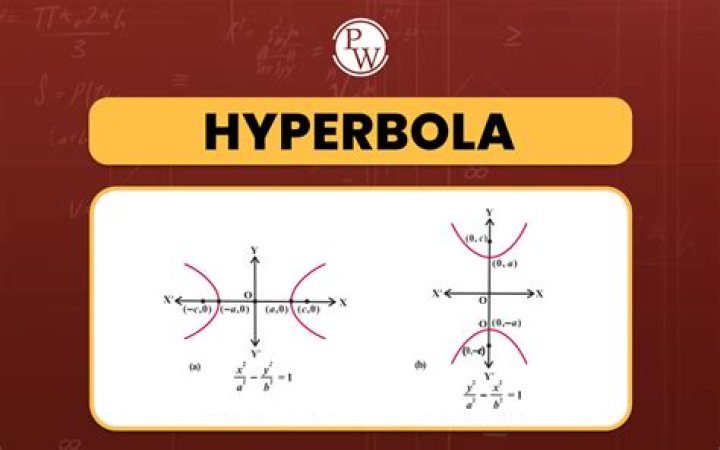

What is the standard form of a hyperbola?

The center, vertices, and asymptotes are apparent if the equation of a hyperbola is given in standard form: (x−h)2a2−(y−k)2b2=1 or (y−k)2b2−(x−h)2a2=1. To graph a hyperbola, mark points a units left and right from the center and points b units up and down from the center.

How is a hyperbola a conic section?

Hyperbolas are conic sections, formed by the intersection of a plane perpendicular to the bases of a double cone. Hyperbolas can also be understood as the locus of all points with a common difference of distances to two focal points. All hyperbolas have two branches, each with a focal point and a vertex.

How do you know if a parabola is a conic?

1. Circle: When x and y are both squared and the coefficients on them are the same — including the sign. …
2. Parabola: When either x or y is squared — not both. …
3. Ellipse: When x and y are both squared and the coefficients are positive but different.

How do you tell the difference between a circle and an ellipse equation?

The only difference between the circle and the ellipse is that in an ellipse, there are two radius measures, one horizontally along the x-axis, the other vertically along the y-axis. Clearly, for a circle both these have the same value.

What type of conic section can be determined if its center and radius are known?

The graph of a circle is completely determined by its center and radius. Standard form for the equation of a circle is (x−h)2+(y−k)2=r2. The center is (h,k) and the radius measures r units. To graph a circle mark points r units up, down, left, and right from the center.

Is circle a conic section?

Defining Conic Sections The circle is type of ellipse, and is sometimes considered to be a fourth type of conic section. Conic sections can be generated by intersecting a plane with a cone.

What is parabola conic section?

A parabola is a conic section. It is a slice of a right cone parallel to one side (a generating line) of the cone. … A parabola is defined as the set (locus) of points that are equidistant from both the directrix (a fixed straight line) and the focus (a fixed point). This definition may be hard to visualize.

What is rectangular hyperbola?

The rectangular hyperbola is the hyperbola for which the axes (or asymptotes) are perpendicular, or with eccentricity . … The hyperbola is the section of a rectangular cone of revolution (angle at the vertex equal to 90°) by a plane strictly parallel to the axis of the cone.

Article first time published on

Is degenerate conic a conic?

In geometry, a degenerate conic is a conic (a second-degree plane curve, defined by a polynomial equation of degree two) that fails to be an irreducible curve.

What is the difference between hyperbola and parabola?

ParabolaHyperbolaA parabola has single focus and directrixA hyperbola has two foci and two directrices

How do you find C in a hyperbola?

1. Solve for a using the equation a=√a2 a = a 2 .
2. Solve for c using the equation c=√a2+b2 c = a 2 + b 2 .

What is C in hyperbola?

The hyperbola is centered on a point (h, k), which is the “center” of the hyperbola. The point on each branch closest to the center is that branch’s “vertex”. … The “foci” of an hyperbola are “inside” each branch, and each focus is located some fixed distance c from the center. (This means that a < c for hyperbolas.)

How do you convert standard form to hyperbola?

(x−h)2a2−(y−k)2b2=1(y−k)2a2−(x−h)2b2=1Center(h,k)(h,k)

How do you identify a conic section using the discriminant?

Another way to classify a conic section when it is in the general form is to use the discriminant, like from the Quadratic Formula. The discriminant is what is underneath the radical, \begin{align*}b^2-4ac\end{align*}, and we can use this to determine if the conic is a parabola, circle, ellipse, or hyperbola.

How do you solve a conic equation?

When working with circle conic sections, we can derive the equation of a circle by using coordinates and the distance formula. The equation of a circle is (x – h)2 + (y – k)2 = r2 where r is equal to the radius, and the coordinates (x,y) are equal to the circle center.

Which of the following conic is formed if the cutting plane is parallel to two generators?

This conic is a parabola. If the cutting plane is parallel to two generators, this intersects nappes of the cone, and a hyperbola is obtained. An ellipse is obtained if the cutting plane is parallel to no generator, in which case the cutting plane intersects each generator, as shown in figure c.

How do you find the center of a conic?

The center can be found as the solution of the following system of equations ax+by+d=0,bx+cy+e=0. (This system has a unique solution, since the determinant of the matrix of this system is δ≠0.) That means, the coordinates of the center can be computed as x=be−cdδ,y=bd−aeδ.

How are hyperbolas and ellipses similar?

A hyperbola is related to an ellipse in a manner similar to how a parabola is related to a circle. Hyperbolas have a center and two foci, but they do not form closed figures like ellipses. … Like an ellipse, a hyperbola has a center (h, k) and foci (h ± c, k).

How are a circle and an ellipse similar?

An ellipse and a circle are both examples of conic sections. A circle is a special case of an ellipse, with the same radius for all points. By stretching a circle in the x or y direction, an ellipse is created.

Are all circles ellipses?

Yes, every circle is an ellipse. The formal definition of an ellipse is the set of all points such that the sum of the distance between those points…

Is cylinder a conic section?

If a cylinder is sliced by a plane a number of curves arise depending on the angle of the plane with respect to the cylinder axis, these are called conic sections.

Is Triangle a conic section?

In triangle geometry, a circumconic is a conic section that passes through the three vertices of a triangle, and an inconic is a conic section inscribed in the sides, possibly extended, of a triangle. Suppose A,B,C are distinct non-collinear points, and let ΔABC denote the triangle whose vertices are A,B,C.

Is Ellipse a conic section?

Ellipses are the closed type of conic section: a plane curve tracing the intersection of a cone with a plane (see figure). Ellipses have many similarities with the other two forms of conic sections, parabolas and hyperbolas, both of which are open and unbounded.

How do you find the rectangular hyperbola?

A rectangular hyperbola is a hyperbola having the transverse axis and the conjugate axis of equal length. For a rectangular hyperbola we have 2a = 2b, or a = b. The general equation of a rectangular hyperbola is x2 – y2 = a2.

What is the difference between hyperbola and rectangular hyperbola?

What is the difference between ? Rectangular hyperbola is a special type of hyperbola in which it’s asymptotes are perpendicular to each other. (x2/a2) – (y2/b2) = 1 is the general form of hyperbolas, while a=b for rectangular hyperbolas, i.e: x2 – y2 = a2.

What is the formula of rectangular hyperbola?

The rectangular hyperbola then has equation of the form xy=c 2. For example, y=1/x is a rectangular hyperbola. For xy=c 2, it is customary to take c>0 and to use, as parametric equations, x=ct, y=c/t (t ≠ 0).

What is the degenerate case of hyperbola?

The degenerate case of a hyperbola is two intersecting straight lines: Ax2+By2=0, when A and B have opposite signs.

What do you call to a line lying entirely on the cone?

The point must lie on a line, called the axis, which is perpendicular to the plane of the circle at the circle’s center. This point is called the vertex, and each line on the cone is called a generatrix. The two parts of the cone lying on either side of the vertex are nappes.

When a cutting plane passes through the vertex it forms a degenerated conic?

Degenerate conics fall into three categories: If the cutting plane makes an angle with the axis that is larger than the angle between the element of the cone and the axis then the plane intersects the cone only in the vertex, i.e. the resulting section is a single point. This is a degenerate ellipse.
