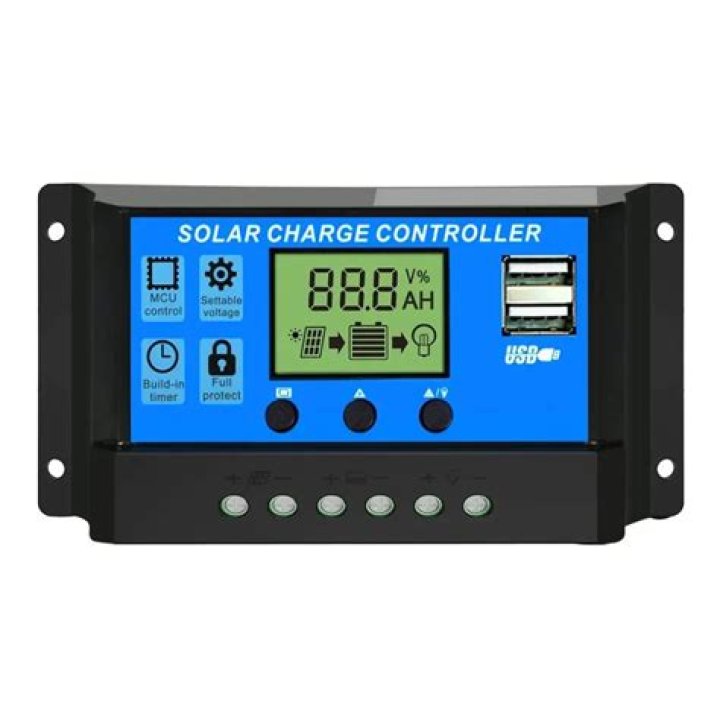

How do you connect a solar panel to a charge controller?

Connect the negative solar cable to the “-” solar terminal on the charge controller. Connect the positive solar cable to the “+” solar terminal. Like before with the battery, the charge controller should light up or somehow indicate that the solar panel is properly connected.

Which wire is positive on a solar panel?

Wiring MC4 Equipped Modules in Series: One wire is the DC positive (+) and the other is the DC negative (-). Generally, the female MC4 connector is associated with the positive lead and the male connector is associated with the negative lead.

What is the purpose of the load terminals of the solar charge controller?

Low voltage disconnect (LVD) – sometimes referred to as “load control” is a feature that instructs the solar charge controller to disconnect the battery’s energy flow to electrical loads when the battery voltage decreases to a low voltage setpoint.

Can I charge inverter battery with solar panel?

With the concept of the solar conversion kit, any inverter or battery can now be converted into a solar inverter. Solar conversion kit is an additional device or a solar panel which could be connected to our existing home inverters, thus converting the system into a hybrid form.

Can I run an inverter from a solar panel?

Yes you can connect an inverter to your solar panels without batteries, and you will still be able to power your home, however then it will go to the grid.

What order do you connect the solar system?

We recommend that you connect the adapter kit to your panel first, then follow the + or – sign coming off of the leads of the panels and match it with the + and – sign on the charge controller.

What happens if I reverse polarity on solar panels?

PV panels are a source of power so connecting them backwards, at least in daylight, is more likely to damage your circuits than damage the panel.

What are the load terminals?

The load terminals on a charge controller power connected DC devices. Loads can be many things from a DC refrigerator to a DC LED light. Some loads should not be connected to the controller’s load terminals and instead connected directly to the battery.

What is MPPT algorithm?

Maximum power point tracking (MPPT) is an algorithm implemented in photovoltaic (PV) inverters to continuously adjust the impedance seen by the solar array to keep the PV system operating at, or close to, the peak power point of the PV panel under varying conditions, like changing solar irradiance, temperature, and …

How does the regulator work on a solar panel?

Disconnect the positive cable between the battery and the regulator Measure the operating current by connecting the +ve from the multimeter to the positive cable from the regulator, and the -ve from the meter to the positive battery terminal. This measures the current that the panel (and charge controller) are passed to the battery.

Can a charge controller be connected to a solar panel?

Turn the charge controller on: it should be able to measure the charge of the battery. In the user manual of a charge controller there should be a wiring diagram, which you can consult if in doubt. After you’ve connected the charge controller with the battery, it is now safe to connect it to panels.

How is a battery connected to a solar panel?

The battery is connected to the battery terminals of the charge controller (same like PV panel wiring i.e. positive terminal of battery is connected to the positive terminal of charge controller and vice versa for negative terminals).

Why are connectors important in a solar panel?

In this next video installment in the Solar Basics series, we will take a look at connectors. Often overlooked, connectors are important to maintaining reliable and efficient power as well as flexibility. There are many different types of connectors but only a few are good for use with solar. Loading…

How to connect a charge controller to a solar panel?

Wiring sequence: first connect the battery, set the working mode of the load via solar charge controller, connect the solar panel, connect the load in the last, when disconnecting the solar power system, disconnect in the reverse order This entry was posted in Uncategorized, Wiki. Bookmark the permalink.

Why are IP67 connectors used in solar panels?

IP67 rated for maximum environmental protection, these photovoltaic (PV) system connectors are ideally suited to harsh installations such as solar pan… Used for connecting the output of two solar panels in parallel or connecting multiple panels in an array. Waterproof and UV resistant. Generally used
