How do you check a transmission without a dipstick?

If the vehicle does not have a dipstick, the transmission fluid must be checked at the transmission. This requires lifting the car on four jack stands; it must be level to check the fluid. There will be a fill plug on the side of the transmission case. This is not the drain plug located at the bottom of the sump.

Can a dipstick be used to check transmission fluid?

There is also no way for the consumer to add fluid if it is low. The days of periodically checking your transmission fluid level by pulling a metal dipstick from a tube alongside your engine are rapidly coming to a close.

Why does Ford F150 no longer have transmission dipsticks?

Having this knowledge could potentially save you thousands of dollars down the road, not to mention the unwanted hassle. The issue is, a recently emerging new trend whereby transmission fluid dipsticks have begun disappearing in newer vehicles. One such vehicle is the Ford F150, Canada’s best selling truck.

What to do if your car has no dipstick?

If you discover that your vehicle has a dipstick less transmission, and yet you’ve identified that your vehicle is experiencing transmission problems, you’ll need to take it to a specialist with a hydraulic car lift or an underground oil change bay.

How do you add fluid to a transmission dipstick?

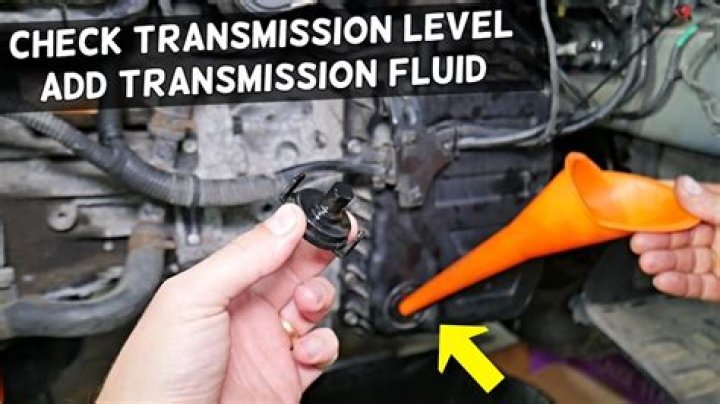

Remove the “fill” plug on the side of the transmission case, not the “drain” plug in the bottom! Stick your finger into the hole. Feel around for fluid, which should be level with the lower edge of the hole. Inspect color/smell of fluid on your finger. Reinstall plug. If you want to add fluid, that’s harder.

Can a transmission be serviced without a dipstick?

Not only does this make it difficult to check fluid level and condition, it also eliminates the dipstick tube or opening through that fluid is normally added to an automatic transmission.

What to do when your dipstick doesn’t come out?

if fluid doesn’t come out when plug is removed, add fluid until it starts to come out; then stop adding You can see it’s no longer a simple matter of lifting the hood, pulling out the dipstick and looking to see where the fluid level is on vehicles with these newer style transmissions. Give Wayne’s Transmissions a call.

What happens when there is no dipstick or fill tube?

On all automatic transmissions I am familiar with that have no dipstick or fill tube it is necessary that the engine be running to remove the side plug when checking/adding fluid. If the engine is not running a considerable amount of fluid will be lost unless the fluid level is significantly low.
