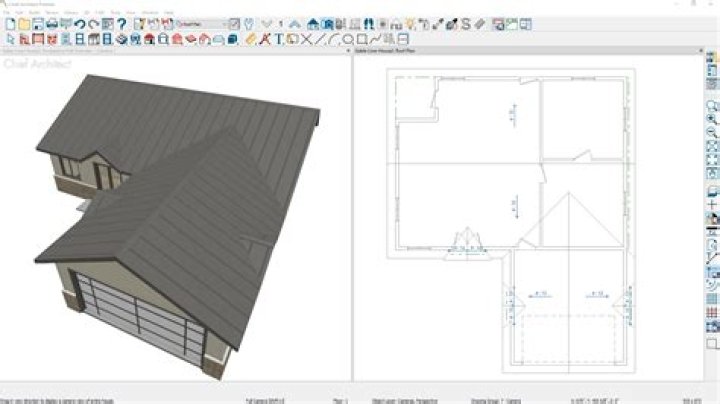

Select Build> Wall> Straight Exterior Wall from the menu and draw four connecting walls to form an enclosed area. … Select Build> Roof> Build Roof from the menu to open the Build Roof dialog. … On the Roof panel of the Build Roof dialog: … Select Build> Roof> Roof Plane from the menu.

How do you build a roof in chief architect?

1. Select Build> Wall> Straight Exterior Wall from the menu and draw four connecting walls to form an enclosed area. …
2. Select Build> Roof> Build Roof from the menu to open the Build Roof dialog. …
3. On the Roof panel of the Build Roof dialog: …
4. Select Build> Roof> Roof Plane from the menu.

How do you make a gable roof in chief architect?

1. In Floor Plan view, click on a wall that you would like to form a gable over to select it, then click on the Open Object edit button.
2. On the Roof panel of the Wall Specification dialog, select the Full Gable Wall option, then click OK to close the dialog and apply the change.

How do you make a flat roof in chief architect?

1. Launch Chief Architect and create a new plan by selecting File> New Plan from the menu.
2. Select Build> Wall> Straight Exterior Wall and draw four walls in a clockwise manner to make a simple enclosed rectangular structure.

How is a roof designed?

Roofs are framed in five basic designs: shed, gable, hip, gambrel and mansard. The gable is the most common, and it can be complicated with multiple roof lines, including valleys and dormers. … The framing of a basic gable roof is based on a right-angle triangle, and the various roof framing components fit the triangle.

What is a parapet wall on a roof?

parapet, a dwarf wall or heavy railing around the edge of a roof, balcony, terrace, or stairway designed either to prevent those behind it from falling over or to shelter them from attack from the outside.

How do you change the pitch of a roof in chief architect?

1. Using the Select Objects tool, Click on the wall that the roof section you wish to change will bear on to select it, then click the Open Object edit button.
2. On the Roof panel of the Wall Specification dialog, specify the desired Pitch. …
3. Repeat for all walls that will support a roof plane with a non-default pitch.

How do you make a curved roof in chief architect?

Select Build> Roof> Roof Plane from the menu, then click and drag to draw a roof plane that bears on one of the horizontal walls. This roof plane will become a curved eave, or Dutch kick.

Can roofs be flat?

A flat roof is a roof which is almost level in contrast to the many types of sloped roofs. The slope of a roof is properly known as its pitch and flat roofs have up to approximately 10°. Flat roofs are an ancient form mostly used in arid climates and allow the roof space to be used as a living space or a living roof.

What should a roof plan include?

A roof plan often includes the dimensions of the roof, which includes the design of the roof, its shape and size, and the material placement — vents, drains, valleys, and slopes, etc. When planning for new roof construction or repairs and renovations of an existing roof, the roof plan is crucial.

Article first time published on

How do you design a pitch on a roof?

The pitch of your roof is determined by the measurement of the vertical rise by the horizontal run. That is to say, the roof pitch (expressed as a ratio) tells you how many inches the roof rises for every 12 inches of depth. So, let’s say a roof rises 6 inches for every 12 inches in depth towards the peak.

What is architectural roofing?

roof, covering of the top of a building, serving to protect against rain, snow, sunlight, wind, and extremes of temperature. … Roofs have been constructed in a wide variety of forms—flat, pitched, vaulted, domed, or in combinations—as dictated by technical, economic, or aesthetic considerations.

What holds a house roof up?

Trusses are pre-fabricated, triangulated wooden structures used to support the roof. The alternative is to build up the roof’s frame with 2x8s and 2x10s. Trusses are quite common these days because they have five big advantages from the builder’s standpoint: Trusses are incredibly strong.

How do you make a dormer chief architect?

1. Check the box beside Build Roof Planes.
2. Specify the desired Pitch. …
3. Check the box beside Ignore Top Floor.

How do I increase the pitch on my roof?

Pitched Roof Change the pitch on an existing sloped roof by removing the old roof and framing. Take off shingles or other roof covering and remove the membrane and sheathing. Use a pry bar to pull loose shingles and wood decking. Strip the roof to its rafters or trusses.

What is the fence on a roof called?

A parapet is a barrier that is an extension of the wall at the edge of a roof, terrace, balcony, walkway or other structure. The word comes ultimately from the Italian parapetto (parare ‘to cover/defend’ and petto ‘chest/breast’).

Why do flat roofs have parapets?

Most flat roofs have a parapet. They protect the entire roof system from wind-uplift. … They hide necessary roofing materials including drains and vents. They protect furniture and other objects from falling off the roof (If the roof is being used as a public space or terrace)

Are parapets required?

11 requires all buildings to have parapets unless it meets one of 6 exceptions. The first of which is a required fire rating per table 602.

What is the cheapest type of roof to build?

Generally, a gable-style roof with asphalt roofing shingles is one of the most affordable roofs you can build on a residential home. Asphalt shingles typically cost $150-$400 per square foot, excluding installation costs. Simplifying your roof design and lowering its pitch can also help you save money.

What is roof overhang?

The roof overhang refers to how much the edge of the roof goes beyond the house siding. Under the overhang is a structure known as the soffit. Most homes have an overhang, however, length varies greatly depending on the architectural style of the roof, with slate roofs having longer overhangs typically.

What type of roof is best for flat roof?

For many projects, PVC roofing is our preferred choice as the best flat roof material on the market. PVC roofing is somewhat more expensive than other single-ply commercial roofing materials, however it offers a wide range of benefits for the price.

How do you slope a flat roof?

4 Answers. 1) Adding slope can be done two ways: a) cut tapered wood members and install new roof sheathing and a new roof. This can be done on top of the existing roof sheathing or remove the existing sheathing and sister in sloped joists. Either way it will be difficult.

What is a slab roof?

The slab or roof slab object is a three-dimensional (3D) body bounded by a planar polygon (perimeter) of any shape, and has multiple edges. The object is defined by its perimeter, edge conditions, and style.

What is hip roof design?

A hip roof (or hipped roof) is a type of roof design where all roof sides slope downward toward the walls – where the walls of the house sit under the eaves on each side of the roof. … The purpose of your home’s roof is to protect the entire structure (and you) from weather. Like rain, snow, sleet, wind and hail.

What's the pitch of a roof?

Roof pitch (or slope) tells you how many inches the roof rises for every 12 inches in depth. An Example of a roof pitch would be a “6/12 pitch” which means that the roof rises 6 ” for every 12″ inward towards the peak (or ridge).

How do you draw a roof pitch in AutoCAD?

1. Open the tool palette that contains the roof tool you want to use, and select the tool. …
2. On the Properties palette, select Single slope or Double slope for Shape.
3. In the drawing area, specify points for the corners of the roof.
4. When you are finished specifying points, press Enter.

What is hip and valley roof?

1 The hip roof. A hip & valley roof is simply a modified or extended hip roof. The shape and pitch of the surfaces are basically the same, however the base shape changes from a simple rectangle to a ‘T’ or ‘L’ shape, on plan.

How is the roof plan different from the roof framing plan?

A roof plan is used to show the shape of the roof . The roof framing plan is similar to the roof plan but in addition to showing the shape of the structure and the outline of the roof, it also shows the size and direction of the framing members use to frame the roof.

What type of construction drawing is a roof plan?

What does a roof plan look like? Typically, a roof plan is a simple 2D drawing which shows a bird’s eye view of your roof. Annotations can be made to further explain specific aspects, such as ridges and slopes, as well as the roof pitch. and are drawn to the same scale as an accompanying floor plan.

How do I plan a roof project?

1. Know the Weather Forecast. Always know the weather forecast. …
2. Have the Materials Available. Before you tear off the first shingle, make sure all of the materials have been delivered and are readily available. …
3. A Reliable Runner. …
4. Scheduling Software. …
5. Choose A Foreman.
