Switch Clicks On and Off Repeatedly One of the most frequent culprits is a blown bladder in the water tank. You’ll need to replace this component, and also inspect the switch contacts to see if they’ve suffered any damage from the cycling.

Why is my pressure switch clicking on and off?

Switch Clicks On and Off Repeatedly One of the most frequent culprits is a blown bladder in the water tank. You’ll need to replace this component, and also inspect the switch contacts to see if they’ve suffered any damage from the cycling.

What is normal water pressure for a house with a well?

Normal well water pressure should fall between 40 and 60 psi, so if your pressure is outside the normal range, adjust the pressure switch.

How do you adjust a water pressure switch on a Square D?

Open a water faucet and watch the pressure gauge. Under a normally set pressure switch, the pump should come on at 30 PSI and shut off at 50 PSI. If the pump is starting and stopping at too low a pressure, turn the larger nut clockwise. Adjust just a little at a time and allow the pump to operate.

How do you calibrate a pressure switch and a pressure transmitter?

1. Depressurize & disconnect for safety.
2. Connect the pressure source and the pressure calibrator to the switch input.
3. Connect the device to measure the switch output status.
4. Exercise the switch a few times – pump full pressure and back to zero.

How do I increase well water pressure?

The simplest way to increase your well water pressure is to adjust the pressure switch on your pressure tank. Pressure tanks have both “cut-on” and “cut-off” pressure settings. When the water pressure in your tank drops below the cut-on level, the pressure switch activates and increases the pressure in the tank.

How do you increase your water pressure?

Look on the main supply pipe near your water meter for a conical valve that has a bolt sticking out of the cone. To raise pressure, turn the bolt clockwise after loosening its locknut. Keep an eye on the gauge to make sure the pressure is within bounds, then retighten the locknut.

Why is my pressure switch chattering?

Clogs or blockage at the water supply outlet side of the pump; a dirty or clogged water filter can cause pressure switch chatter as can corrosion or scaling inside the water supply piping to the pump or anywhere between the pump outlet and the pressure tank’s inlet.

How do I know if my water pressure switch is bad?

1. There is no water and the pump doesn’t turn on at all.
2. The pump keeps cycling.
3. The pump is working but the water pressure is weak.

How do I increase water pressure in my sprinkler system?

Remove a few sprinkler heads from each of the zones in your system and cap the plumbing that led to them. Decreasing the number of sprinkler heads will increase the water pressure in those that remain. Install a boost pump on the main irrigation line.

Article first time published on

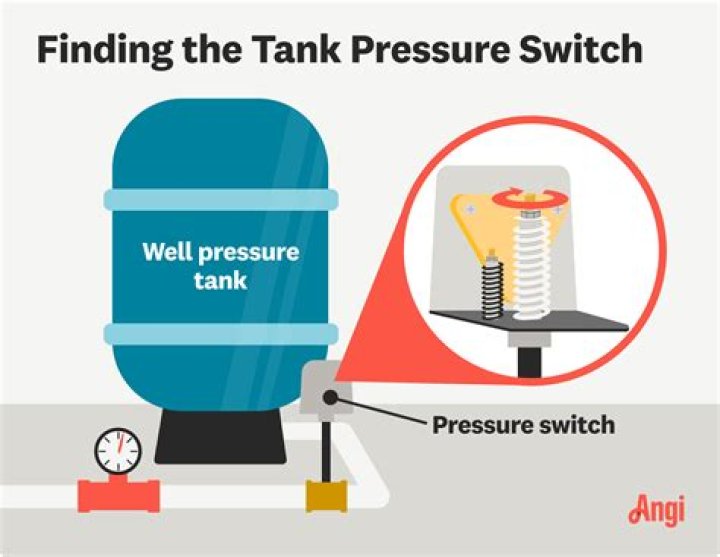

Where is the well pump pressure switch?

You’ll find the pressure switch mounted on a 1/4-in. tube near the pressure tank. It’s what senses when water pressure has dropped to the point where the pressure tank requires more water. The switch then powers up the well pump.

What should a pressure reducing valve be set at?

Most valves have a locking nut. Once you unscrew this nut, you will be able to turn the adjustment screw, knob, or bolt. Adjust it until the pressure shown on your gauge reaches the desired level. For most residential purposes, that means a pressure below 80 psi.

How do you adjust a water pressure regulator UK?

1. turning the screw in – or CLOCKWISE will raise or increase the pressure coming out of the valve. …
2. turning the screw out – COUNTER-CLOCKWISE will lower or decrease the output pressure from the valve.

How do I check my water pressure without a gauge?

1. Turn on the sink and shower in the bathroom.
2. Flush the toilet once.
3. Watch the flow of water in the shower.
4. If pressure visibly drops when the toilet is filling back up, then there is a good chance that the water pressure in the home is compromised.

How do I fix low water pressure in my house?

1. Contact your neighbors. …
2. Check your well pump. …
3. Test the pressure yourself. …
4. Clear the clogs. …
5. Open your main water valve. …
6. Replace the regulator. …
7. Look out for leaks. …
8. Install a home water pressure booster.

Is 70 psi too high for water pressure?

How High Is Too High? The ideal water pressure level is between 50-70 PSI. If your water pressure goes above 70 PSI (even occasionally), you should install a pressure regulator to your main water line.

How do you calibrate a pressure sensor?

1. Connect the sensor to the control software.
2. Accurately apply zero and full-scale pressure to the transducer. …
3. Using the software, adjust the zero and full-scale output calibration variables until the respective outputs of the sensor are correct.

What tool that can use to calibrate pressure switch?

we must use a pressure calibrator or Multimeter (DMM) to determine the current state of the switch.

How do you adjust a pressure transmitter?

1. Connect the transmitter test hose from the calibrator to the transmitter.
2. Connect the mA measurement jacks of the calibrator to the transmitter.
3. Set the pressure/vacuum selection knob to the necessary function.
4. Close the vent knob and supply metering valve.

Why is my water pressure so low?

If the low water pressure seems restricted to a single faucet or showerhead, the problem isn’t with your pipes or water supply, but with the fixture itself. If it’s a sink, the most common causes are a clogged aerator or clogged cartridge. … These cloudy spots block the flow of water and decrease water pressure.

Where is my water pressure regulator?

Your water pressure regulator is usually located right after the main shut-off valve for your water supply. This is typically found outside the house. Once you know where the shut-off valve is, you’ll find the water pressure regulator.

How do I adjust the water pressure in my shower?

1. Clean the shower head. …
2. Check for a flow restrictor. …
3. Check for kinks. …
4. Check that the valve is fully open. …
5. Check for leaks. …
6. Open the water heater shut-off valve. …
7. Flush the water heater. …
8. Buy a low-pressure shower head.

Can you adjust a well pressure switch?

Pressure switches with two posts allow adjustment of the cut- on and cut-off pressure at the same time. … To raise only the cut-off pressure , turn nut #2 clockwise. To lower any pressure, turn the nut counter-clockwise . NOTICE: The switch should never be adjusted to cut-on below 20 PSI, or cut-off above 60 PSI.

How do you test a bad pressure switch?

1. A pump that cycles continuously for no apparent reason.
2. A pump that works, but has very weak water pressure.
3. A pump that doesn’t turn on and does not provide any water.

Why does my water pump keep kicking on and off?

Short cycling of a water pump which is defined at SHORT CYCLING WATER PUMP means that the water pump or “well pump” turns on and off too rapidly or too frequently when water is being run in the building. … The most-common cause of pump short-cycling is loss of air in the water pressure tank.

What happens if pressure tank pressure is low?

If tank pressure drops, the bladder may have a tear or hole in it. A tank is waterlogged if it is completely filled with water or has too much water to function correctly. Waterlogged bladder pressure tanks contribute to the following problems : The pump motor cycles – turns on and off – too often.

Why does my water pump pulsate?

A well water pump that pulsates is usually an indicator that there’s not enough pressure in a water tank. … If either of these is worn out or not working, this can cause a pulsating water flow due to water surging in the pipes.

How do you fix low pressure sprinklers?

If this is the only issue, the fix is simple: access your backflow valves and open them completely to improve your water pressure. Most backflow preventer devices have two pipes: one that is horizontal and one that is vertical.

How do you fix low pressure sprinkler heads?

If the pressure is low at only one or two sprinkler heads, they may simply be dirty. Examine the sprinkler head and filter and clean if needed. Grass can also grow around the base of the sprinkler heads and cause them not to pop up fully, so trim and clear away any obstructions.
