How do you add vectors to component form

The component form of a vector is the ordered pair that describes the changes in the x- and y-values. In the graph above x1=0, y1=0 and x2=2, y2=5. The ordered pair that describes the changes is (x2- x1, y2- y1), in our example (2-0, 5-0) or (2,5). Two vectors are equal if they have the same magnitude and direction.

How do you express vectors in component form?

How do you write a vector?

A vector has magnitude (size) and direction: …
a − b. …
A vector is often written in bold, like a or b. …
The vector a is broken up into. …
We can then add vectors by adding the x parts and adding the y parts: …
When we break up a vector like that, each part is called a component: …
|a| …
||a||

How do you convert vectors to components?

Explanation: When separating a vector into its component form, we are essentially creating a right triangle with the vector being the hypotenuse. We can now represent these two components together using the denotations i (for the x component) and j (for the y component).

How do you add vectors to a graph?

The head-to-tail method of adding vectors involves drawing the first vector on a graph and then placing the tail of each subsequent vector at the head of the previous vector. The resultant vector is then drawn from the tail of the first vector to the head of the final vector.

How do you add vectors step by step?

To add vectors, lay the first one on a set of axes with its tail at the origin. Place the next vector with its tail at the previous vector’s head. When there are no more vectors, draw a straight line from the origin to the head of the last vector. This line is the sum of the vectors.

How do you add vectors examples?

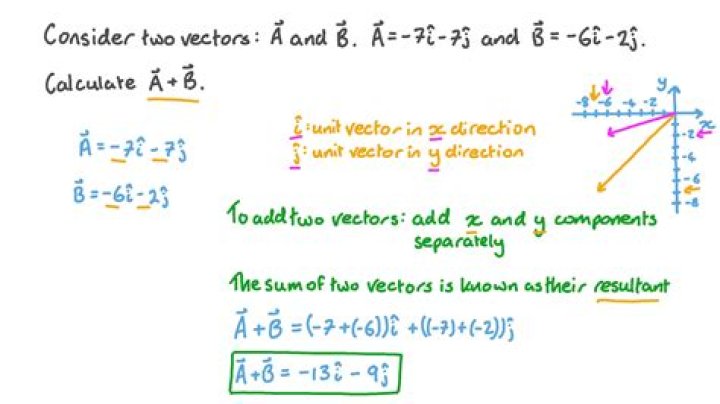

To add the vectors (x₁,y₁) and (x₂,y₂), we add the corresponding components from each vector: (x₁+x₂,y₁+y₂). Here’s a concrete example: the sum of (2,4) and (1,5) is (2+1,4+5), which is (3,9).

What is the component of vector?

Each part of a two-dimensional vector is known as a component. The components of a vector depict the influence of that vector in a given direction. The combined influence of the two components is equivalent to the influence of the single two-dimensional vector.

What are the forms of vectors?

Zero Vector.
Unit Vector.
Position Vector.
Co-initial Vector.
Like and Unlike Vectors.
Co-planar Vector.
Collinear Vector.
Equal Vector.

How do you add vectors to dummies?

To add two vectors, you place them head to tail and then find the length and magnitude of the result. The order in which you add the two vectors doesn’t matter.

Article first time published on

How do you add vectors in maths?

Adding vectors Vectors can be added by drawing the first vector, then starting the second vector where the first vector ends. The single vector they create ( X Z → ) is the resultant vector.

How do you write a vector in component form using unit vectors?

As shown in (Figure), the x– and y– components of a vector can now be written in terms of the unit vectors of the axes: {→Ax=Ax^i→Ay=Ay^j. { A → x = A x i ^ A → y = A y j ^ . The vectors →Ax A → x and →Ay A → y defined by (Figure) are the vector components of vector →A .

How do you find a vector?

Explanation: To find the directional vector, subtract the coordinates of the initial point from the coordinates of the terminal point.

How do you name vectors?

We can assign names to vector members. For example, the following variable v is a character string vector with two members. We now name the first member as First, and the second as Last. Then we can retrieve the first member by its name.

How do you find the component form of the resultant vector?

To find the resultant of two vectors in component form, just add the x components of each and the y components of each. The angle labeled as theta (Θ) is the angle between the resultant vector and the west axis. The head to tail method is way to find the resultant vector.
