How do I wire RJ11 with CAT5?

CAT5 connectors (RJ45) have 8 contacts (4 wire pairs); standard telephone jacks (RJ11) have 4 contacts (2 wire pairs). When using Cat5 use the center pair (Blue/Blue-white) in the CAT5 cable. Connect the CAT5 pair to the Red and Green on the standard phone jack.

What wire is used with RJ11?

4 wires

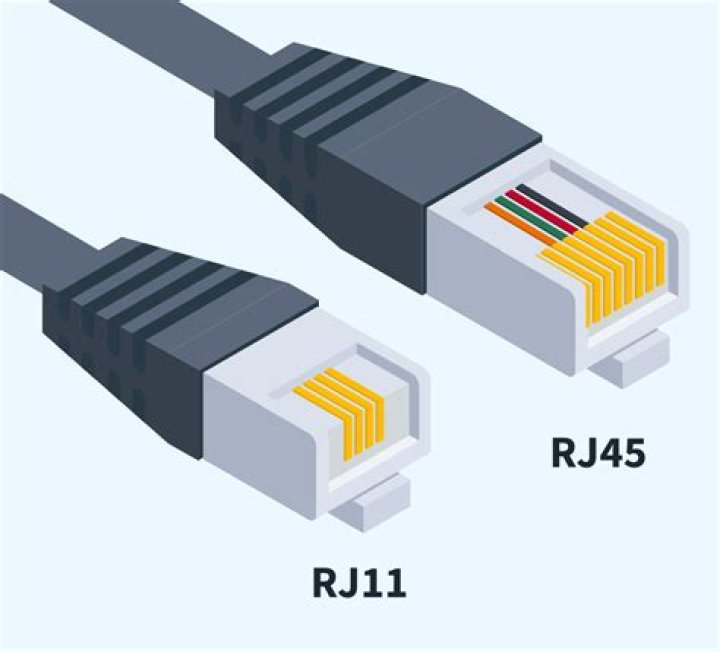

RJ45 is mostly used with ethernet cables while RJ11 in connecting telephone units. RJ45 has 8 wires inside while Rj11 has 4 wires.

How do I connect RJ11 to RJ45?

You don’t need an adapter to plug an RJ11 male (2/4/6 connector modular telephone jack) into a RJ45 female port (8 wire modular telephone port). Just plug it in. It just works. Well, it works, if you have telephone signal on the center 2 or 4 wires of the RJ45 jack.

How do you wire two phone lines together?

It’s possible to use two phone lines without using a two line phone, but you have to either rewire your wall jacks or purchase a two-line splitter. These devices plug into a standard two-line jack and split the line, directing the first line to one jack and the second line to the other jack.

Can I use RJ45 instead of RJ11?

Warning – Don’t plug an RJ11 plug into an RJ45 socket RJ11 plugs can permanently damage your RJ45 socket. Data cabling systems normally use RJ45 connectors. The right way to use an RJ11 connector in a data cabling system is use an RJ11 to RJ45 adapter.

Can I use CAT5 for RJ11?

Why is it called RJ45?

The “RJ” in RJ45 stands for Registered Jack, a standard designation that originated with the Universal Service Ordering Code (USOC) scheme of the Bell System back in the 1970s for telephone interfaces. The old telephone RJ you’re probably familiar with is the RJ11.

What is the wiring diagram for duo therm?

The Duo-Therm air conditioning system will not oper- . Wiring Diagram for Cool, Furnace & Heat Strip. Wiring . ALL INITIAL INSTALLATIONS MUST BE APPROVED BY THE DOMETIC CORP. Lire et comprendre ce C. The ability of the air conditioner to maintain the desired inside temperature FIELD WIRING DIAGRAM.

What is the symptom of duo therm Comfort Control Center?

Duo-Thermﬁ Comfort Control Center Systems SYMPTOM CAUSE REFER TO STEP This program will address the most common system problems associated with the Duo-Therm Comfort Control Center supplied by The Dometic Corporation.

What is the quick start kit for duo therm?

FIG. 22 Threaded Hole In Bottom Mounting Bolt Upper Discharge Duct Discharge Air .The Quick Start Kit can be ins talled on all Duo-Therm roof mounted air conditioners and heat pum ps. The Quick Start Kit will allow the compressor to start properly when operated on the Onan Micro-Lite Generator as the volt power source.

What is the wiring diagram for a Dometic B?

Dometic B Manual Online: Air Conditioning Unit, Wiring Diagram. FIG. 22 Threaded Hole In Bottom Mounting Bolt Upper Discharge Duct Discharge Air .The Quick Start Kit can be ins talled on all Duo-Therm roof mounted air conditioners and heat pum ps.

Is there a wiring diagram for a Dometic duo therm brisk air conditioner?

Wiring diagram for model Bxx1c0 – Dometic Duo Therm Brisk Air Conditioner. Posted by Anonymous on Aug 23, and have your model number available for them. They might be able to locate a copy of the wiring diagram of your air conditioner for you.

What are the different types of RJ-11 connectors?

There are registered jack designations from RJ11 to RJ48. Though the RJ-11 connector has a total of 6 connector positions, typically either only 2 or 4 are used. RJ-11 connector wiring comes in two standard types. There’s (A) Untwisted and (B) Unshielded Twisted Pair.
