Insert the threaded PVC hub in the hole and screw on the hub’s lock nut with the raised side of the nut facing the side of the panel box. Tighten it securely using tongue and groove pliers. Screw the PVC end bushing on the hub and tighten with the pliers.

How do you attach conduit to panel box?

Insert the threaded PVC hub in the hole and screw on the hub’s lock nut with the raised side of the nut facing the side of the panel box. Tighten it securely using tongue and groove pliers. Screw the PVC end bushing on the hub and tighten with the pliers.

Do you glue electrical conduit?

Yes, an electrical PVC conduit needs to be glued properly with PVC solvent cement or water and insects could get in there to damage the electrical wires, especially if the conduit is buried underground.

What connects conduit to electrical box?

Conduit fittings allow you to make connections in an electrical system. They can connect two runs of conduit or secure conduit to an electrical device. These types of fittings are commonly called conduit fittings and electrical fittings to separate them from types of fittings used for plumbing.

How do you connect conduit to conduit?

You can connect conduit bodies to the conduit with special fittings. The raceway is the box, conduit wires and connectors. You should connect conduit bodies depending on the type of conduit. Connect a plastic conduit with plastic boxes and a metal conduit with metal boxes.

Can you use plumbing PVC for electrical conduit?

Applications. Electrical PVC is not intended to be exposed to high pressure, as in water lines, and is not rated for use with high-pressure air. … Conversely, plumbing PVC should not be used for electrical conduit applications as it does not handle ultraviolet radiation well, and is of reduced rigidity.

What type of fitting is recommended where PVC conduit is connected to a box or enclosure?

Use a non-metallic PVC connector with PVC conduit. Locknuts are used to fasten conduit fittings to a box or enclosure. Insulating bushings are used to protect the wires from the sharp interior edge of the fitting. This is especially important when pulling wire into an electrical box or enclosure.

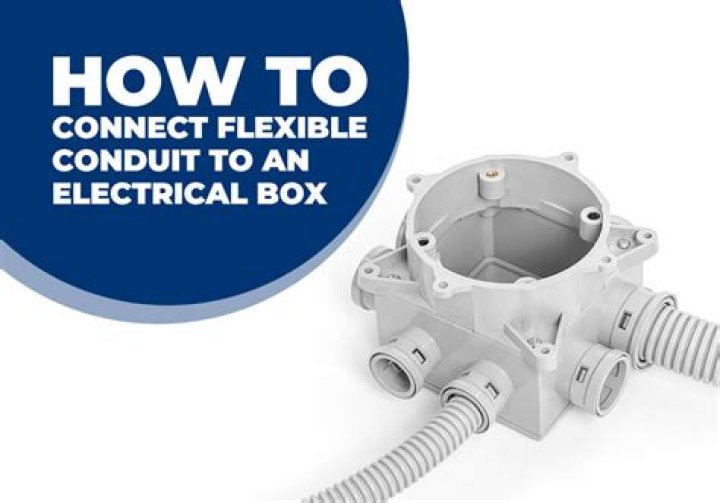

How is the flexible conduit fixed to the conduit box?

Most commonly they are threaded and will screw into the conduit, or often, they may have a squeeze connector that utilizes a screw to tighten onto a conduit line. You simply insert the connector until the conduit is firmly in place and then use a screwdriver to tighten the screw.

Is it OK to run Romex in conduit?

Running Romex in a Conduit When using any non metallic wire outdoor, including Romex, it is a good idea to run it through a conduit. Yes, they can be used outdoors, it is better to be safe than sorry. We recommend using a conduit when running the wire underground.

How do you secure a flexible conduit?

Once in a great while an electrician might use flexible metal conduit (FMC). The general rule for securing and supporting FMC is to fasten it within 12 inches of the box and secure it no further than every 4.5 feet.

Article first time published on

Should you glue conduit?

Some PVC pipes require primer, but you don’t need to use primer when gluing conduit and fittings. Home centers usually sell the appropriate glue/cement near the the PVC conduit and fittings. … Unlike PVC plumbing pipes, PVC conduit and fittings can be difficult to pull apart once you shove them together.

Can conduit support a box?

Essentially, rigid metal or intermediate metal conduit can support an enclosure that is supporting a fixture where the conduit is secured within 18 inches of the enclosure. … This exception also permits a single conduit to support a box used for fixture support or a wiring enclosure used in lieu of a box.

How do you attach plastic conduit?

When joining lengths of conduit, you simply solvent-glue the smooth end of one piece into the hubbed socket of another piece. Lengths of conduit can be cut with any saw, but the best way to cut PVC conduit is with a PVC tubing cutter, of the same type used to cut PVC plumbing pipe.

What is the difference between white PVC and GREY PVC?

Grey PVC is used as electrical conduit and is better suited for sunlight resistance. The fittings for this type of pipe are made to pull wires into and not intended for containing pressured fluids. White is for plumbing applications. Both use the same solvents and glues.

Can Romex be put in PVC conduit?

Yes, NM cable can be in conduit. In fact. NEC calls for it to be in conduit, when protection from physical damage is required.

Can you use white PVC as electrical conduit?

The most noticeable difference between regular PVC and electrical PVC is the color of the pipes. PVC pipe that is used for plumbing is usually white while electrical conduit PVC is usually gray. … Therefore, Schedule 80 pipes should not be used as an electrical conduit.

Can you connect PVC conduit to metal box?

The PVC conduit is solvent welded (glued) to an adapter with male pipe threads on one end. The threaded end of the adapter is inserted into the knockout and a locknut is screwed on inside the box. If the box is a wet-location rated box with built-in threaded fittings, the adapter is threaded directly into the box.

How often should Romex be stapled?

General Cable Support Runs of NM cable must be supported at least every 54 inches. 1 They also must be secured within 12 inches of an electrical box that includes a cable clamp or within eight inches of a box or enclosure without a cable clamp.

Can you use indoor wire outside in conduit?

It’s important that you follow National Electrical Code (NEC) rules when running an indoor wire through a conduit outdoors. You need to ensure that the conduit is buried deep enough within the ground: 24 in. … of cover for a PVC conduit, and 6 in. of cover for RMC and IMC conduits.

What kind of wire do you run in conduit?

Wiring Used With Conduit The most common type of cable used in home wiring is non-metallic (NM), or Romex, cable. While NM cable can be run inside a conduit, this is seldom done. The types of wire most commonly installed inside of conduit are THHN and THWN.
