The general depth of underground water pipes is 12 inches below the frost line

How deep should a water pipe be buried UK?

How Deep Should Water Pipes be Buried in the Ground? Blue MDPE pipe is used to supply mains water to homes and properties throughout the UK. When laying MDPE water supply pipe, it should be laid at a minimum of 750mm and a maximum of 1350mm below finished ground level.

How deep should drainage pipes be buried?

In order to carry the flow and to avoid blockages, the drain or sewer that you intend to connect to generally needs to be at least 0.8m lower than the ground floor level. If it is less than this, you should seek advice from a builder, architect or drainage engineer.

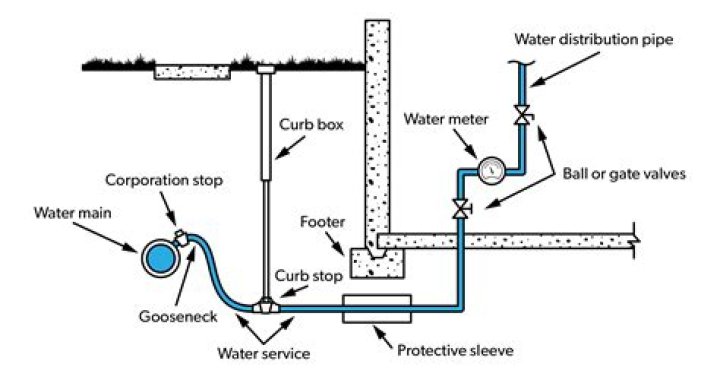

What is the minimum depth a water main service pipe should be laid at?

The private (supply) pipe is to be laid at a minimum depth of 750mm and up to a maximum depth of 1350mm below finished ground level (in accordance with Water Supply (Water Fittings) Regulations 1999 G7. 7). However, where the pipe crosses the property boundary and enters the premise, the depth should be 750mm.

Can you run water pipes outside?

you can run a pipe externally but it needs to be installed in an insulation box () but these are not cheap and need to be installed correctly.

How deep are sewage pipes buried UK?

between 75 cm and 135 cm deep from the finished ground level. The minimum depth is to ensure frost protection (under normal UK conditions) and the maximum depth is to ensure reasonable access for repairs.

How deep is a water pipe trench?

How deep should the trench be for water pipes? There is a minimum and maximum depth at which service pipes should be laid: Minimum depth is 750 mm. Maximum depth is 1350 mm.

What is the correct fall for underground drainage?

A 110mm foul drain taking the discharge of less than 1 l/s should be laid at a 1:40 (25mm per metre) fall. A foul drain taking the discharge from a minimum of one WC can be laid at 1:80 (12.5mm per metre).

How deep should services be buried UK?

A gas main should normally be laid with a minimum depth of cover of 750 mm in a road or verge and 600 mm in a footpath. A gas service pipe should normally be laid with a minimum depth of cover of 375 mm in private ground and 450 mm in footpaths and highways.

How deep can PVC pipe be buried?

At depths of more than 10 feet, a water traffic load is often considered to have a little to no effect on the buried pipe. 12″ from the top of the pipe to the underside of the road surface is the minimum depth at which PVC pipe with traffic loading can be buried.

Article first time published on

Can underground drainage be used above ground?

Above ground PVCu drainage pipe and fittings can only be used above ground. They will function if installed underground, but are not manufactured to the correct standards for this application, Building Regulations Part H state that PVCu materials for below ground gravity drainage should be to BS EN 1401 or BS EN 13476.

What is the best pipe to use for underground water line?

HDPE (High Density Polyethylene) pipes are a considered the best choice for underground water lines. What makes this type of piping so great? HDPE pipes are non-toxic, tasteless, and considered a green building material. The pipes are designed to be high crack- and corrosion-resistant.

Which pipe is best for water supply?

CPVC is suitable for hot water and drinking water, unlike normal PVC. Compared with copper, CPVC pipes are smoother, and they produce less noise when water flows through. CPVC piping is also insulated to prevent energy loss, more flexible than metallic piping, and fire resistant.

What size is blue mains water pipe?

Blue Mains Water Pipe We stock; 20mm, 25mm, 32mm, 50mm and 63mm. The size relates to the outside diameter of the pipe.

What size water pipe should I use in my house UK?

a new or replacement connection The standard service pipe size for domestic purposes is normally 25mm (outside diameter). However, in exceptional circumstances a domestic service could be up to 63mm (outside diameter).

Can water and power be in the same trench?

If trench is to be a joint trench (shared with other utilities) the following separations must be maintained: 24 inches between gas and electric lines. 12 inches between water and electric lines. … 12 inches between communications and electric lines.

What is the minimum depth of a sewer line?

718.3 No building sewer or other drainage piping or part therefore, which is constructed of materials other than those approved for use under or within a building, shall be installed under or within two (2) feet (610mm) of a building or structure, or part thereof, nor less than one (1) foot (305mm) below the surface of …

How deep should a mains electric cable be?

Where it is decided that cables will be buried in the ground, the cables should be routed such that they are not likely to be damaged by any foreseeable disturbance and should be buried at sufficient depth (normally taken as not less than 600 mm).

How deep does Armoured cable need to be buried UK?

Regulations for GB is that buried armoured cable is at a depth of at least 18″. If its not armoured,it could be pyrotenex cable or in suitable conduit.

How do I check my pipes before digging?

811 is the national call-before-you-dig phone number. Anyone who plans to dig should call 811 or go to their state 811 center’s website before digging to request that the approximate location of buried utilities be marked with paint or flags so that you don’t unintentionally dig into an underground utility line.

What is the minimum slope for water flow?

Generally, minimum slope for water to run off is 1% (1/8″ per 1′).

How much slope does a drain pipe need?

The ideal slope of any drain line is ¼ inch per foot of pipe. In other words, for every foot the pipe travels horizontally, it should be dropping ¼ inch vertically.

What are the 4 types of drainage patterns?

• Dendritic drainage pattern. Dendritic drainage systems (from Greek δενδρίτης, dendrites, “of or like a tree”) are not straight and are the most common form of the drainage system. …
• Trellis drainage pattern. …
• Rectangular drainage pattern. …
• Radial drainage pattern. …
• Deranged drainage pattern.

How long will schedule 40 PVC pipe last underground?

Barring any crushing or displacement from external forces, and assuming the temperature being discharged down it is below 120 degrees, schedule 40 PVC should give good service for many years like 3o or more, schedule 30/34 is nearly as good but a bit more fragile. I have seen both types last in excess of 20 years.

Can you use black drainage pipe underground?

Black soil pipe will be fine mate, just ensure you use a slow radius bend at the base of the new SVP.

Whats the difference between soil pipe and underground pipe?

In the most simple terms, both pipes carry waste from our homes to the sewer but there is a crucial difference between the two types. A soil pipe is designed to carry soiled water from the toilet, urinal or bidet to the sewer. A waste pipe carries water from your sinks, shower, washing machine or bath.

What Colour should soil pipe be?

Underground drainage pipes and fittings are almost always terracotta orange in colour. This makes identification easy, as soil pipes installed above ground level are usually black, grey or white.

How big of a water line do I need?

A two family house can virtually never size out for a 1″ service line. … In the case of a three family house an 1 1/2″ service line is typically required. Again the exception would be if the length of the run of pipe was only 35′ or less. In most cases a six family house or greater will require a 2″ water service line.

Which is better copper or PVC for water main line?

Resists corrosion and impact damage better than copper pipe because plastic doesn’t corrode, and because PVC pipe is thicker than copper pipe. This means it’s better for areas where the pipe will be exposed in high-traffic areas. … This is because PVC doesn’t conduct heat as well as copper does.

Which PVC pipe is best for underground drainage?

SDR 35 thick-wall PVC piping is the best material for drainage system piping. Compared to the black, corrugated drain lines you’re probably used to, our thick-wall PVC doesn’t bend, sag, leak water, or get crushed.

What is the safest pipe for drinking water?

Copper pipes with lead-free joint materials are the best choice for water pipes. They are long-lasting and won’t leach chemicals into your drinking water. However, copper pipes are generally more expensive, and copper’s intensive extraction and manufacturing process presents some environmental trade-offs.
