How big should a junction box be for straight pull?

To illustrate how these requirements prevent conductor insulation damage, let’s consider two extremes in a straight pull situation. Fig. 1. Use 314.28 (A) to size pull boxes, junction boxes, and conduit bodies when using conductor sizes 4 AWG and larger.

How many raceways are in a junction box?

Let’s say a junction box contains two trade size 3 raceways on the left side and one trade size 3 raceway on the right side. The conductors from one of the trade size 3 raceways on the left wall are pulled through a trade size 3 raceway on the right wall (straight pull).

Which is an example of a pull box?

Pull box sizing (Example 2) Let’s say a pull box contains a trade size 2 and trade size 3 raceway on the left side, a trade size 3 raceway on the top, and a trade size 2 raceway on the right side. The trade size 2 raceways are a straight pull, and the trade size 3 raceways are an angle pull.

When does a conductor enter a removable cover?

When conductors enter an enclosure with a removable cover (e.g., conduit body, handhole enclosure, or wireway), the distance from the removable cover to where the conductors enter must not be less than the bending distance listed in Table 312.6 (A), based on one conductor per terminal.

How to calculate the size of a junction box?

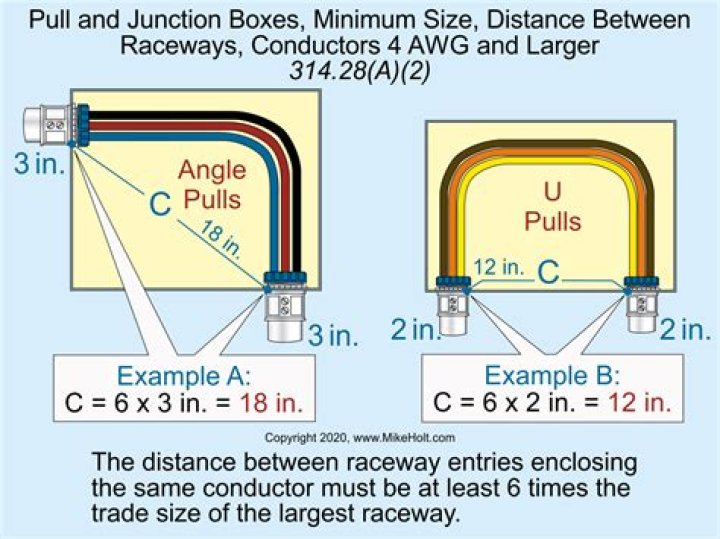

In such situations, junction box sizing requirements are a bit more complicated. Start with the largest raceway size like you did in the straight pull, but also do the following: Multiply the raceway size by six, rather than eight. Add together the sizes of any other raceways on the same wall and row.

Why do you need a junction box in a raceway?

Of course, junction boxes are used for reasons other than simply making a straight pull easier. You may use a junction box to splice conductors, combine runs from multiple raceways into one raceway, split runs from one raceway into multiple raceways, or simply to change the direction of the raceways.

How are the wires connected to a light fixture?

The wall outlets. The White neutral wires are connected together and the white fixture wire is connected as well. The black wire is connected to the other black wire. The red wire is connected to the black wire of the light fixture.

How big of a box do you need for a straight pull?

For straight pulls, 314.28 (A) (1) requires that the length of the box be at least eight times the trade size of the largest raceway. To correctly apply 314.28 (A) (1), just multiply the largest raceway size by eight. The box must be at least as long as that number.
