How are the pins connected on a slide switch?

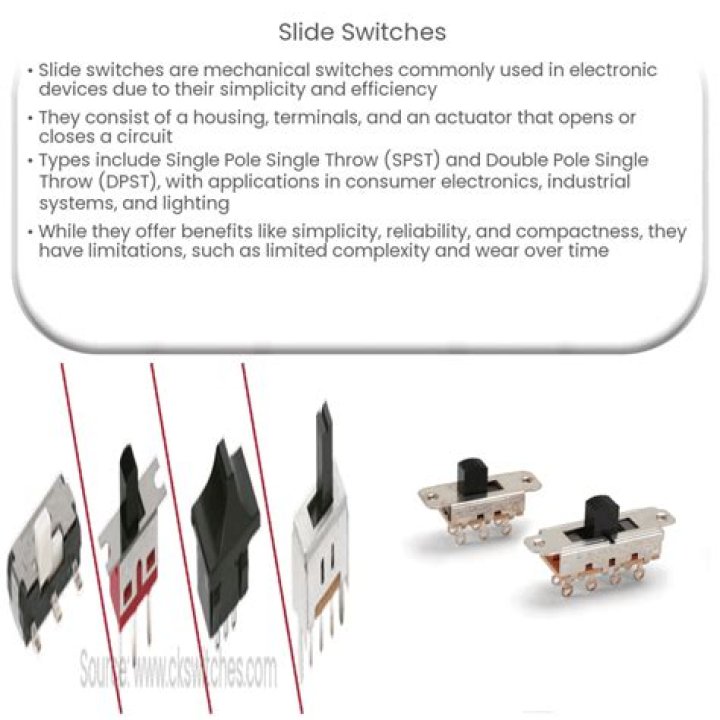

Since it has two possible positions, and three pins, you have a connection between pin 1 and 2 when position 1 is selected, and between pin 1 and 3 when position 2 is selected. As BSF comment below, the middle pin is common. This means it will be connected to the outside pins depending on where the switch is moved towards.

Can you wire a light bar to a 5 pin switch?

Once that is complete, run the rest of the light bar wiring and you are good to go. If you are trying to convert a 3 pin light bar switch to a 5 pin rocker switch, then please read below. To wire a 3 pin switch to a 5 Pin rocker switch you need to find out what your 3 wires do.

How does a slide switch work on an Arduino?

That explains these switches pretty clearly. Connect the center pin of the switch to a digital pin on your Arduino. Connect one of the outer pins to ground. Set the digital pin on the Arduino to INPUT_PULLUP mode. Then, when you read the digital state of the pin, if it is LOW, the switch is closed.

How does a single pole double throw switch work?

As others have said, this is a SPDT (Single Pole Double Throw) switch. The center pin is common. When the switch is slid one way, it connects the center pin to the outer pin on that side. When you slide the switch the other way, it connects the center pin to the opposite outer pin.

What’s the wiring diagram for a 5 pin power window switch?

You can find this manual easy to utilize and also really cost-effective. Dc 12V 20A Universal Auto Car Power Window Switch 5 Pin On/off Spst – 5 Pin Rocker Switch Wiring Diagram You can always depend on Wiring Diagram as an essential reference that will enable you to save time and money.

Once that is complete, run the rest of the light bar wiring and you are good to go. If you are trying to convert a 3 pin light bar switch to a 5 pin rocker switch, then please read below. To wire a 3 pin switch to a 5 Pin rocker switch you need to find out what your 3 wires do.

What are the pins for a series Select switch?

You will need to connect two wires to each of pins 1 and 4. These pins will be your two power supply wires, as well as one wire from EACH of your motors. As this switch WILL NOT change polarities, make sure that your positive wire from one motor (we will call this one Motor “A”) is connected to the positive power source wire, and pin 1.

What’s the name of the 5 pin rocker switch?

Rocker Switch Diagram – Wiring Diagram Name – 5 Pin Rocker Switch Wiring Diagram Wiring Diagram not just offers in depth illustrations of everything you can perform, but in addition the methods you need to follow while doing so.
