Does exterior outlet need to be GFCI?

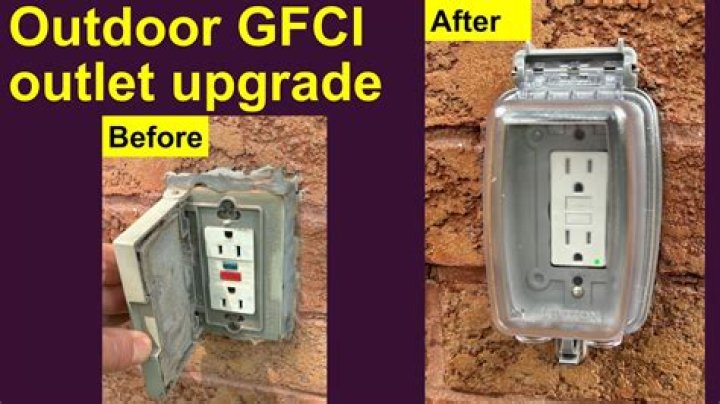

Any 15-amp, 20-amp, or 120-volt outdoor outlet, must have GFCI protection. There are similar outlet requirements for kitchens and bathrooms. Anywhere electricity might be used near water and/or flame, GFCI outlets are at least recommended, if not required, in order to guarantee your family’s safety.

When is a receptacle required to be GFCI?

When the code says something “shall have ground fault circuit interrupter protection for personnel”, it does not care where that GFCI protection is provided — at the outlet via a receptacle-type GFCI, upstream of the outlet using a receptacle or deadfront GFCI device, or via a GFCI branch or feeder breaker.

What should I do if my GFCI outlet stops working?

The GFCI outlet should be tested while the circuit is on by pressing the TEST and RESET buttons. If the testing process does not restore or provide power to the outlet then the GFCI outlet is faulty. Realistically, most GFCI outlets do not last forever and may need replacing.

Can a GFCI outlet be tripped in a shed?

However, the GFCI is not tripped. Anything plugged into it continues to receive power and testing/reseting it works normally, except the shed often remains without power. Sometimes waiting a while and then testing & reseting the GFCI outlet will return power to the shed.

Do you need GFCI protection for deicing equipment?

GFCI (ground-fault circuit-interrupter)protection is required for all outdoor receptacles. Specific exceptions may be made for snow-melting or deicing equipment, where the equipment is powered by an inaccessible outlet. The required GFCI protection can be provided by GFCI receptacles or GFCI circuit breakers.

How can you tell if an outlet has a GFCI?

You can tell if your outlet has a GFCI by the presence of a “Test” button and a “Reset” button. A random passing event such as a power surge can cause a GFCI to trip. Push the “Test” button to ensure power has been shut off to the outlet; then press the “Reset” button to restore power.

Do you need to replace your GFI outlet?

If the testing process does not restore or provide power to the outlet then the GFCI outlet is faulty. Realistically, most GFCI outlets do not last forever and may need replacing. Recommendation: Replace the GFI outlet with one that has the same amperage rating.

How do you disconnect power from GFCI receptacle?

You’ll have to inspect the wires connecting the two devices. Start by shutting off the power, at the breaker. Next disconnect the load wires from the GFCI, and the line wires at the receptacle.

Can a GFCI outlet return power to a shed?

Anything plugged into it continues to receive power and testing/reseting it works normally, except the shed often remains without power. Sometimes waiting a while and then testing & reseting the GFCI outlet will return power to the shed.
