Does a footing need to be level?
Does a footing need to be level?

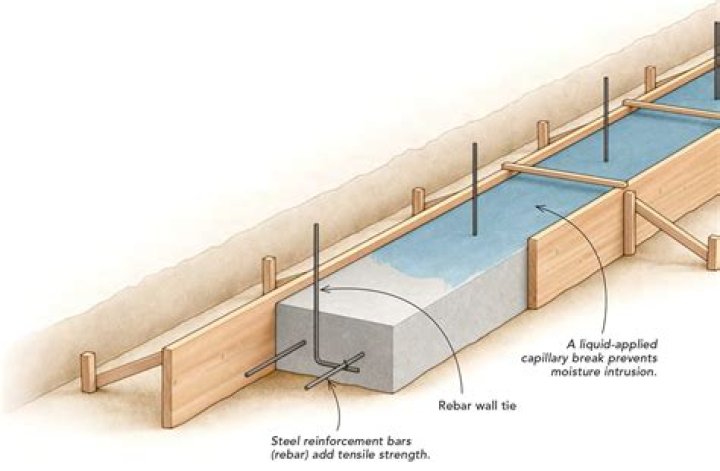

Footings can be larger than required dimensions, but should not be smaller. Footings should be straight and level to within 1/4 in.
How do you level up footings?
Dig your footing trench, using a spirit level to make sure the sides are level. To check the bottom is level too, put a long, straight piece of wood in the trench and lay your spirit level on top of it.
What is the maximum slope allowed for the bottom surface of footings?
10-percent
The bottom surface of footings shall be permitted to have a slope not exceeding one unit vertical in 10 units horizontal (10-percent slope).
Where is sloped footing used?
SLOPED FOOTING: The isolated sloped footing is used to distribute the load evenly from columns to the soil. To transfer the load of the column to its base evenly, that’s why we provide the sloped pattern of the footing.
What is the minimum thickness for a spread footing in inches?
6 inches
4.1. Spread footings shall be at least 6 inches (152 mm) in thickness, T. Footing projections, P, shall be at least 2 inches (51 mm) and shall not exceed the thickness of the footing.
Where do you put stepped footing in a house?
The picture above shows a standard stepped footing for a residential home located in the Northeast. In this example the footing transitions from one grade level down approximately 4 feet to a lower level. The lower level is needed in order to provide frost protection in an area with a walk-out type basement.
Where to position posts in deck footings?
Where to position posts in deck footings. FYI: It is best to keep the bottom of all deck footings to the same soil type. For example, if one footing is into rock, you should take all footings down to rock. The reasoning, as the ground moves, the different soil types react differently and push deck footings around differently.
Where do you put footings in the north?
If you are building in the north, you have to dig down far enough to get below the frost line— the depth to which frost penetrates into the soil. That’s where the footings should be. The foundations have to be tall enough to extend up through the soil
What should I use to set my base footing?
Then drop in the form and continue pumping water from the hole while filling the forms with a stiff concrete mix to a level above the water table. With the pump keeping the water out of the hole, the bottom of the footing could set properly without being weakened by the excess water.
How is the weight of a house spread out on a footing?
In addition to providing a level platform for forms or masonry, footings spread out the weight of the house so the soil can carry the load. The load spreads out within the footing itself at about a 45-degree angle, and then spreads out in the soil at a steeper angle, more like 60 degrees from the horizontal (see Figure 1). Figure 1.
Where to position posts in deck footings. FYI: It is best to keep the bottom of all deck footings to the same soil type. For example, if one footing is into rock, you should take all footings down to rock. The reasoning, as the ground moves, the different soil types react differently and push deck footings around differently.
Then drop in the form and continue pumping water from the hole while filling the forms with a stiff concrete mix to a level above the water table. With the pump keeping the water out of the hole, the bottom of the footing could set properly without being weakened by the excess water.
