Can an RV water pump be mounted vertically?
Can an RV water pump be mounted vertically?

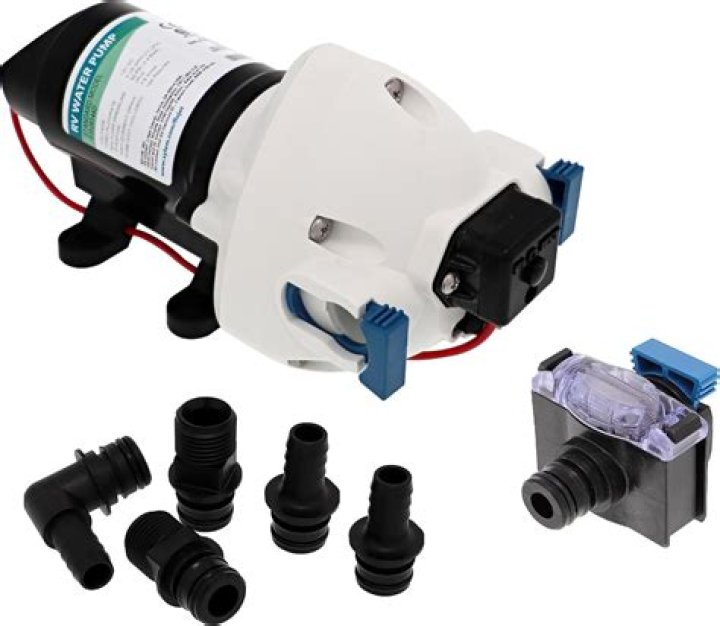

The Flow Max RV Fresh Water Pump # LC689052 may be mounted in any position, which allows you to control the water flow direction as you wanted by mounting it upside down.
Can you install a shurflo water pump upside down?
(Shurflo fitting manual – “The pump may be mounted in any position. However, if mounting the pump vertically the pump head should be in the down position so that in the unlikely event of a leak, fluid will not enter the motor.)
Can you mount a shurflo water pump upside down?
It is important to mount the pump securely, but up, down, left, or right should not have an impact. You can mount this pump flat, sideways, or upside down as long as it isn’t to far above the water source. Hope that helps you out.
Where is the fresh water pump in a RV?
It is located just outside of the fresh water tank, where it pulls the water through itself and into the water main. The 12-volt water pump should be turned off when you aren’t going to be near the RV. If something goes wrong and you spring a leak, you will want to be there to limit the damage.
Do you need to Prime an RV water pump?
Some RV water systems need to be primed in order to deliver water from the tank to the pump, then from the pump to the faucets and fixtures. This is especially true for RVs that need to be winterized and stored for the cold months of the year and then revitalized again in the spring.
What to do if your RV water pump is blocked?
Check to see that supply line from the fresh water holding tank to the RV water pump isn’t blocked for punctured. Sometimes there is a shutoff valve on this line. Make sure that it’s open. If the line is blocked with debris or ice, you’ll need to clear it somehow.
What kind of water system does an RV have?
The RV water system consists of a fresh water holding system, plastic or copper water pipes, a 12 volt RV water pump, a gray water tank, and a valve for dumping. We’re only going to cover the RV water pump in this article. RV water pumps are relatively simple devices.
How to set up a water pump in an RV?
Step #1 Fill up your fresh water tank. Step #2 Turn on the cold water in your RV and make sure the faucets are completely open. Step #3 Switch on the water pump near your RV water tank. Step #4 This should prime the pump by pushing water up from the tank through your faucet.
Where is the water pump on a trailer?
The water pump is usually located behind the UDC, if your trailer has a UDC. On models without a UDC, the water pump may be located anywhere, but generally will be close to the city water connection and to the antifreeze suction hose. Fresh Water Tank Fills by Itself, or Overflows While Using City Water
How can I tell if my RV water pump is grounded?
Use a volt meter to check to see if you have a full 12 volts at the pump, then double check that the pump is grounded. (It won’t work if it’s not grounded.) If you have checked all of these issues and you checked the areas mentioned in the first question, then you may need to fully replace the RV water pump.
What makes a quiet RV water pump good?
The quiet RV water pump is designed with sealed switches to protect them from external element damage. Plus, the pump comes with an electro coating that can prevent corrosion build up on it. However]
