Can a capacitor be wired backwards?

2 days ago
Yes, you can wire an electrolytic capacitor backwards.

What is polarity of capacitor?

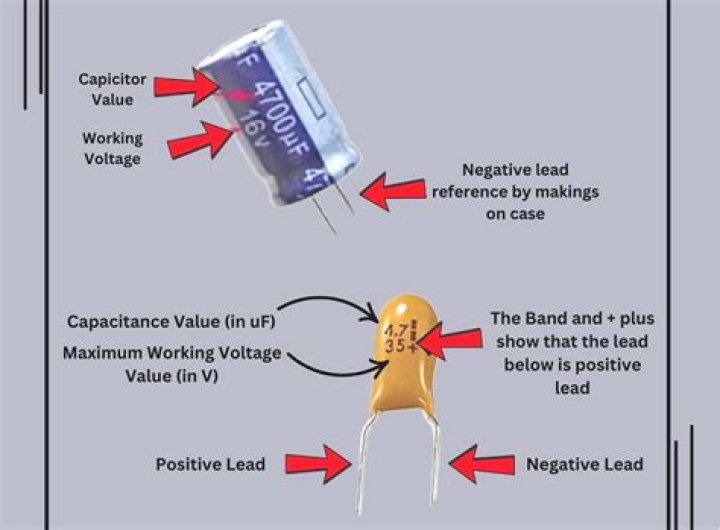

The polarity of capacitors can be identified in several ways as follows. Capacitor whose terminal is longer is a positive polarity terminal or an anode and the capacitor whose terminal is shorter is a negative polarity or cathode. If the capacitor is not polarised, we can connect it in any direction.

What does a 3 wire capacitor wiring diagram mean?

This capacitor have 3 wires in which one is common for both and other two for different value capacitance. My means that there are two capacitor instill in this capacitor and both value is different from one another. The 3 wire fan capacitor diagram mostly available on capacitor but most people did not understood.

What’s the best way to wire a capacitor?

Rule of thumb on wiring the capacitor is: Herm on capacitor goes to the start winding on the compressor, Fan on capacitor goes to brown fan wire that goes to the fan, and Com on the capacitor comes off one leg of the contactor to provide power to the capacitor.

Where does the wire go on a dual round capacitor?

On the dual capacitor, you would have one wire that would come from the contactor, the power wire and attach to the “C” common connection on the dual capacitor. The Fan connection on the capacitor would go to usually the brown wire of the fan motor and the Herm connection on the capacitor would go to the compressor’s “S” start winding.

Which is better 3 wire or 2 wire capacitor?

But the 3 wire capacitor is better than 2 wire because we can use if for two different requirements. In this capacitor one wire is common and between common wire and 2nd wire the capacitor is different then between common and 3rd wire.

Which way to connect a capacitor?

Connect the capacitor’s positive terminal. Whether you are connecting to the battery, amp, or a distribution block of some kind, you need to connect the positive terminal of the capacitor to the positive terminal of the other component by running a wire between them. Eight gauge wire is usually recommended. Aug 11 2019

How do you install a capacitor?

Installing Capacitor. There are two ways to start using Capacitor: adding Capacitor to an existing frontend project (recommended), or starting a fresh project. Capacitor was designed primarily to drop-in to existing frontend projects, but comes with a simple starting project structure if you’d like to start fresh.

What is the function of a dual capacitor?

A dual ” run capacitor ” supports two electric motors, such as in large air conditioner or heat pump units, with both a fan motor and a compressor motor. It saves space by combining two physical capacitors into one case. The dual capacitor has three terminals, labeled C for common, FAN, and HERM for hermetically-sealed compressor.

What is a fan motor capacitor?

Capacitors are a part of the fan motor in your furnace. They are generally divided into two types, both of which provide electricity to the furnace apparatus at key times. The first kind of capacitor is a start capacitor, which helps the motor start up when you first turn on your heater.
