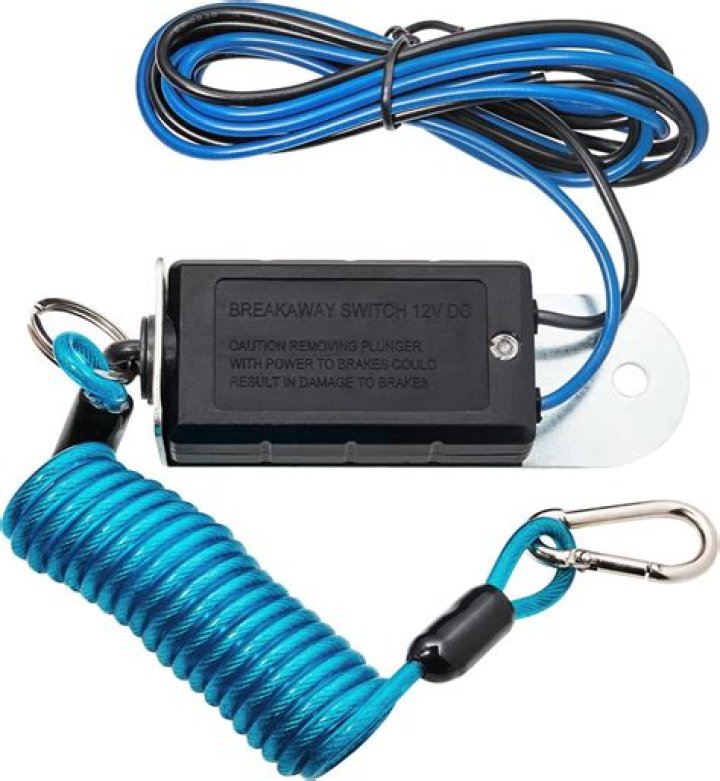

Are breakaway switches required?

Do All Trailers with Electric Brakes have to have a Breakaway System No, but your local and state laws may require one. You will need to check anywhere you will be towing the trailer to determine if a breakaway system is required by law.

How do you wire a 2 wire breakaway switch?

Splice one of the two wires coming out of the breakaway switch into the trailer brake wire running from the trailer connector to the brakes. 2. Open the battery box and connect the second wire coming out of the switch to the positive post (red) on the battery. This connection will send power to the breakaway switch.

How does a breakaway switch work?

Your breakaway cable attaches to the brake system on your trailer and then attaches to the back of your tow vehicle. If the trailer ever becomes detached from your vehicle while towing, this cable pulls out the pin attached to the trailer brake, causing them to engage and safely stop your trailer.

Does a trailer need a breakaway cable?

It is a legal requirement for a breakaway cable to be correctly fitted to all caravans with a maximum technically permissible laden mass (MTPLM) of between 750kg and 3500kg. This applies to all caravans, trailers and similar structures which were manufactured after 1982.

What causes an electrical connection to melt down?

Short Circuits. Short circuits occur when a live wire comes into direct contact with a neutral wire. If this happens, a fuse generally blows, cutting the electrical supply before an electrical connection melts. However, if the fuse does not blow and electricity continues to flow, the wires will get hot.

What causes a coil of wire to melt?

The electrical field current makes this sound. A coil of wire, such as an extension lead, increases the magnetic electrical field current. The result is the production of heat. The wire then gets hotter, making the outer plastic coating soft (and therefore weaker), which strengthens the electrical field, eventually causing the coating to melt.

Why are the wires in the back of the receptacles?

In the back of all receptacles are terminals in which wires should be anchored so they stay in place. But many times, installers stab the wires through and don’t wrap them around the terminal. This is called backstabbing, and backstabbed wires have a tendency to become loose.

What happens when a circuit breaker gets too hot?

When the circuit breaker gets too hot, the breaker is supposed to trip, but sometimes this doesn’t happen. And if it doesn’t, that heat will start to burn the wires on the inside of the receptacle, which can start a fire.
