Are all 7 pin trailer plugs the same?

Helpful Expert Reply: Yes, there is only one type of 7-way blade connector.

How do you replace a 7 pin trailer plug?

How to Fix 7-Pin Trailer Cord

Step 1: Remove old plug. Step 2: Replace with better plug.
Cut off the old plug and expose wires.
Remove shielding from all wires.
Insert cord into plug and attach center wire.
Connect cord wires to plug terminals.
Seal plug assembly.
Secure plug housing.
Test your new plug.

What’s the difference between a 4 pin and a 7 pin trailer plug?

The only real functional difference between them is that on part # 37185 the 4-pole trailer connector is located to the side of the 7-way, rather than under it as with # HM47180. Both adapters plug in at an existing 4-pole vehicle connector and re-format those lighting signals to the 7-way configuration.

How to test 7 way trailer electrical plug?

In this video I show how to test a 7 way trailer plug wiring harness for towing a travel trailer or RV by using a led trailer light adapter tester to test signals, brakes and running lights on the rear hitch of a tow vehicle.

What is the wiring scheme for a 7 Way Plug?

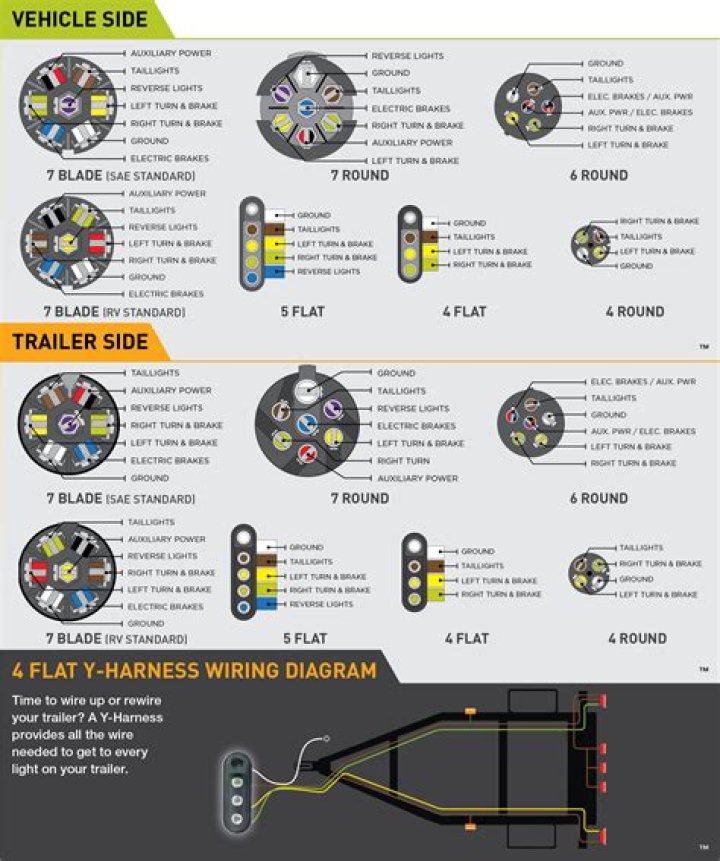

7 Way Plug Wiring Diagram Standard Wiring* Post Purpose Wire Color TM Park Light Green (+) Battery Feed Black RT Right Turn/Brake Light Brown LT Left Turn/Brake Light Red S Trailer Electric Brakes Blue GD Ground White A Accessory Yellow This is the most common (Standard) wiring scheme for RV Plugs and the one used by major auto manufacturers today.

What’s the easiest way to install a 7 Way Plug?

IF YOU HAVE NO CONNECTOR If your vehicle lacks any kind of connector, the easiest way to install a 7-way plug is to install a 4-way and use an adapter. For help installing a 4-way connector, view our how-to guide here.

What do you need to know about trailer wiring connectors?

While some vehicles may not be equipped with a standard trailer wiring connector, they may have a special socket specifically intended for installing wiring, provided by the vehicle manufacturer. A custom wiring connector uses a single plug to plug into this factory socket and provide a standard trailer wiring connector.

Do you need an electrical connection for a towing vehicle?

With the many methods of towing in the RV world, you must have an electrical connection between the RV and the towed vehicle for lights, turn signals, brakes, etc.. Pre-made cables are available at most Camper part stores, as well as kits for wiring into the wiring harness of vehicles.

Can a trailer be wired with a 7 Way Plug?

Most of us aren’t electricians, but that doesn’t mean wiring a trailer is beyond us. We’ll walk you through the trailer-wiring process for 7-way plugs below, so you can get your trailer up and running in no time. Your browser does not support the video element. Your browser does not support the video element.

How to test 7 pin plug on tow vehicle?

– YouTube 7 pin plug on tow vehicle, how to test? If playback doesn’t begin shortly, try restarting your device. Videos you watch may be added to the TV’s watch history and influence TV recommendations. To avoid this, cancel and sign in to YouTube on your computer.
